4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 63
4.5 How to Remove / Re-install the Hopper Module
Approximate time to remove: 30 minutes plus any sub-procedures
Approximate time to re-install: 30 minutes plus any sub-procedures
The hopper module holds the device’s card stock hoppers and carries blank card stock to the image
printer from the hoppers or from the manual feed slot. It is mounted to the top deck plate of the device
along the right side.

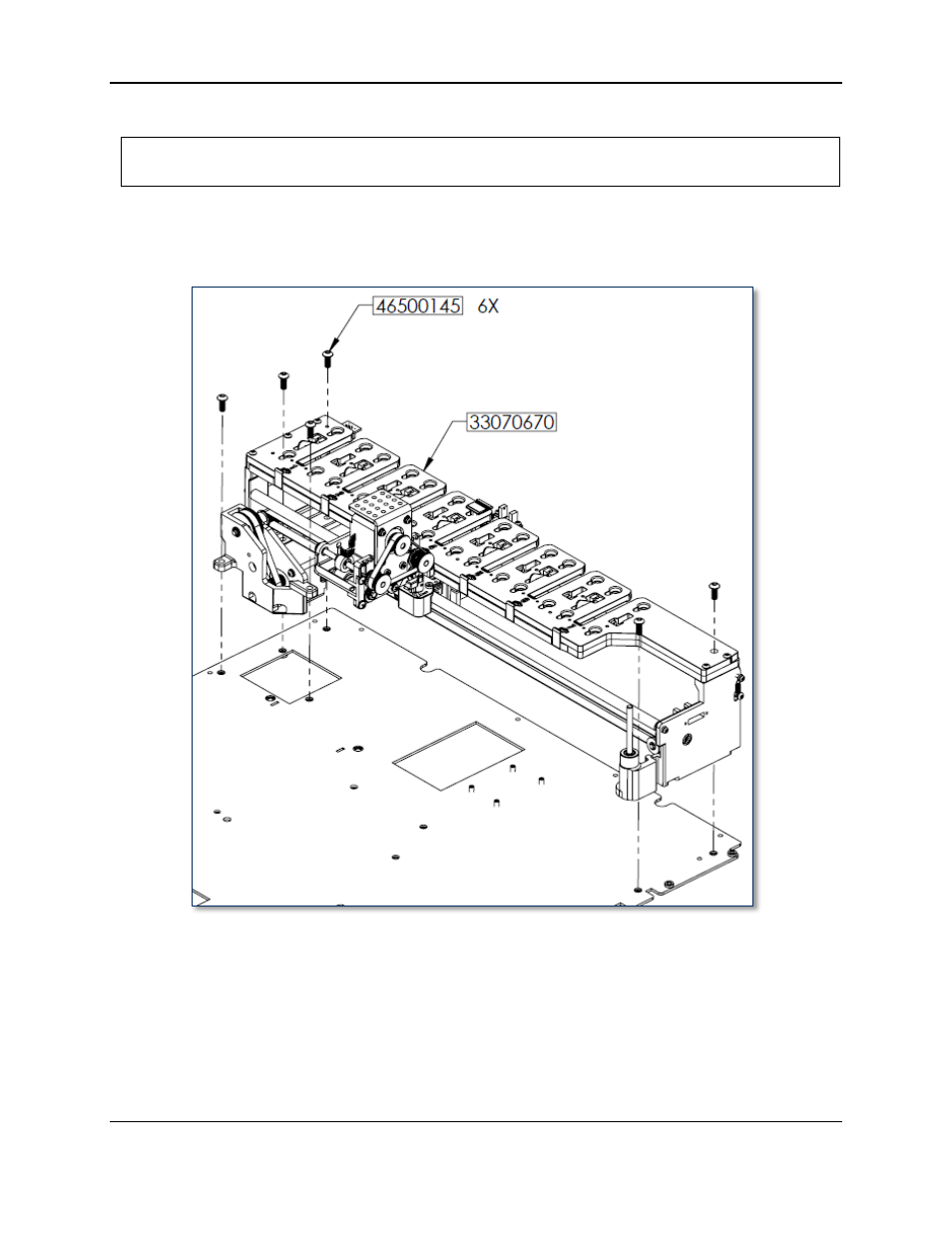

Figure 4-30 - Hopper Module (FRONT LEFT VIEW)
To remove the hopper module, follow these steps:
1) Prepare the device for replacing parts by following the steps in section 4.1 How to Prepare the
Device for Removing / Re-installing Modules. At the end, the device should be powered down with
all external cables safely disconnected.
2) Remove the cover by following the steps in section 4.4 How to Remove / Re-install the Cover.
3) Move the hopper transport to the front of the device, just past hopper 7 and before it rotates to the
manual feed slot (see Figure 4-31 and section 2.8 How to Safely Move Transports By Hand).
