5 - Adjustments

ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual


Page 163

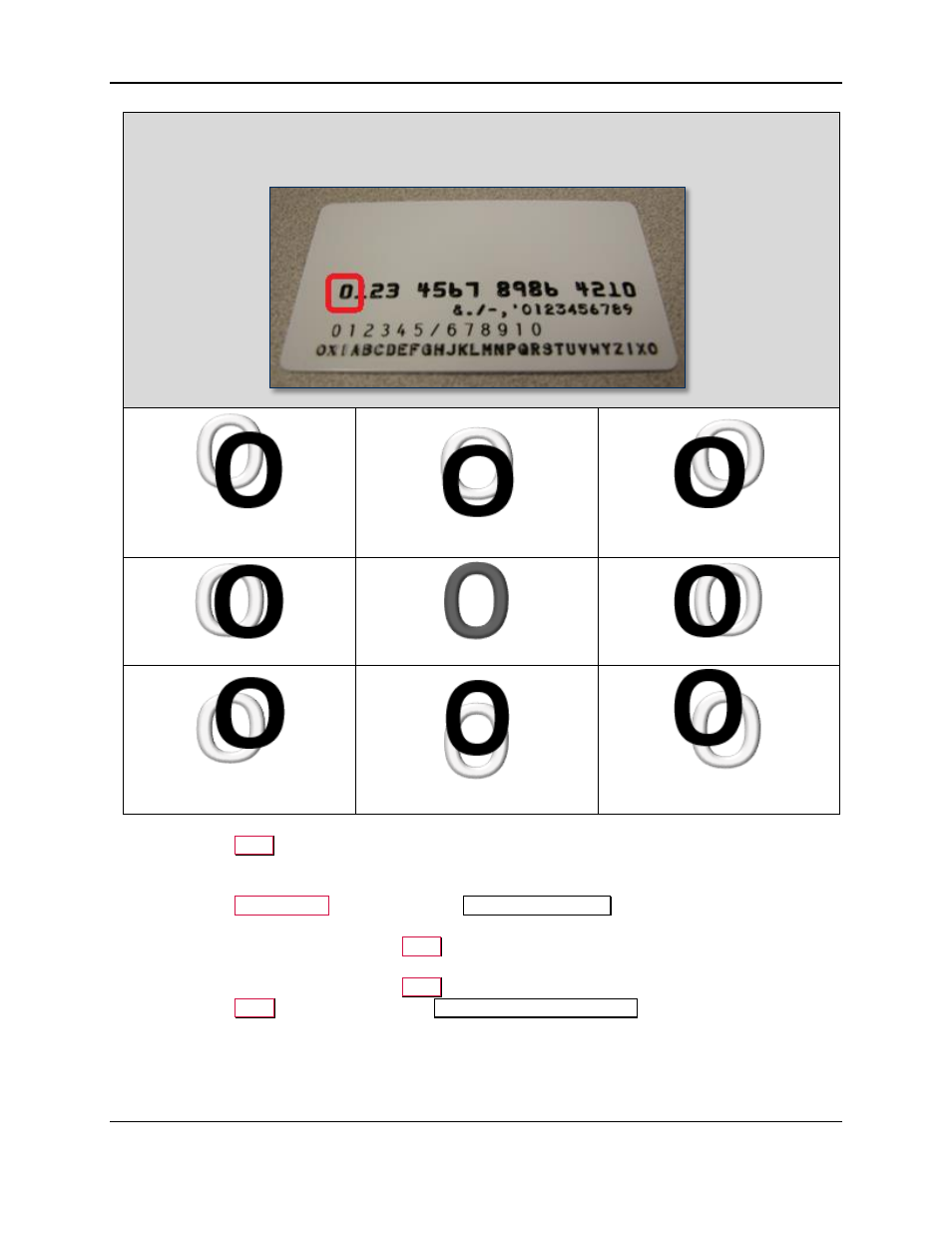

Look at the FIRST number of Font ID1 (PAN)

Adjust Font ID1 X Offset, Font ID1 Y Offset

Repeat for Font ID2, Font ID3, Font ID4

↑ Font ID1 X Offset
↑ Font ID1 Y Offset

↑ Font ID1Y Offset

↓ Font ID1 X Offset
↑ Font ID1 Y Offset

↑ Font ID1 X Offset

Finished

↓ Font ID1 X Offset

↑ Font ID1 X Offset
↓ Font ID1 Y Offset

↓ Font ID1 Y Offset

↓ Font ID1 X Offset
↓ Font ID1 Y Offset

13) Calibrate the Font ID1 X SPI and Font ID1 Y SPI (steps per inch) settings:

a) Press the

Print

button. The EC2000 will create a test card with all font IDs.

b) Look only at the last character of the PAN (Font ID1) from all angles, and determine whether

the embossed character is to the left, right, above, or below the printed character.

c) Press the

Ad

vanced…

button to open the

Tuning (Advanced)

page.

d) If the embossed character appears to the left of the printed character, increase the Font ID1 steps

per inch adjustment and press the

Save

button.

e) If embossed character appears to the right of the printed character, decrease the Font ID1 steps

per inch adjustment and press the

Save

button.

f) Press the

Back

button to return to the

Tuning (Move Embossing)

page.

g) Repeat the process until the embossed and printed last character of Font ID1 is aligned.
