4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 53

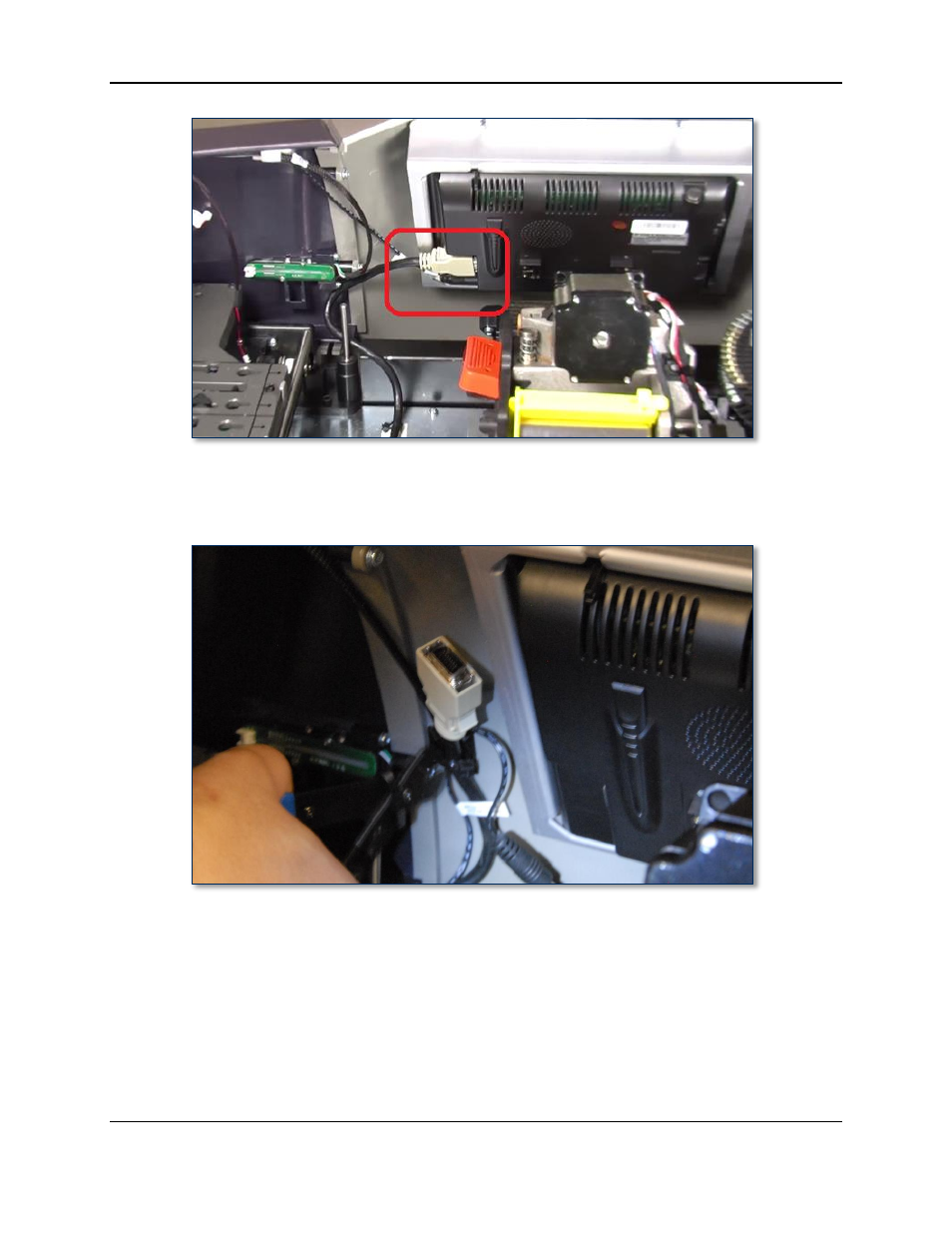

Figure 4-14 - Touchscreen VGA Cable and Power Cable (REAR VIEW)
9) If there are any cable ties anchoring the touchscreen cables to the cover, use the wire cutters or
diagonal cutters to cut the cable ties, and replace them when re-installing the cover.
Figure 4-15 - Touchscreen Power and VGA Cables (REAR VIEW)
10) Disconnect the Top Case Open sensor cable in the rear left corner of the device.
