4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 86

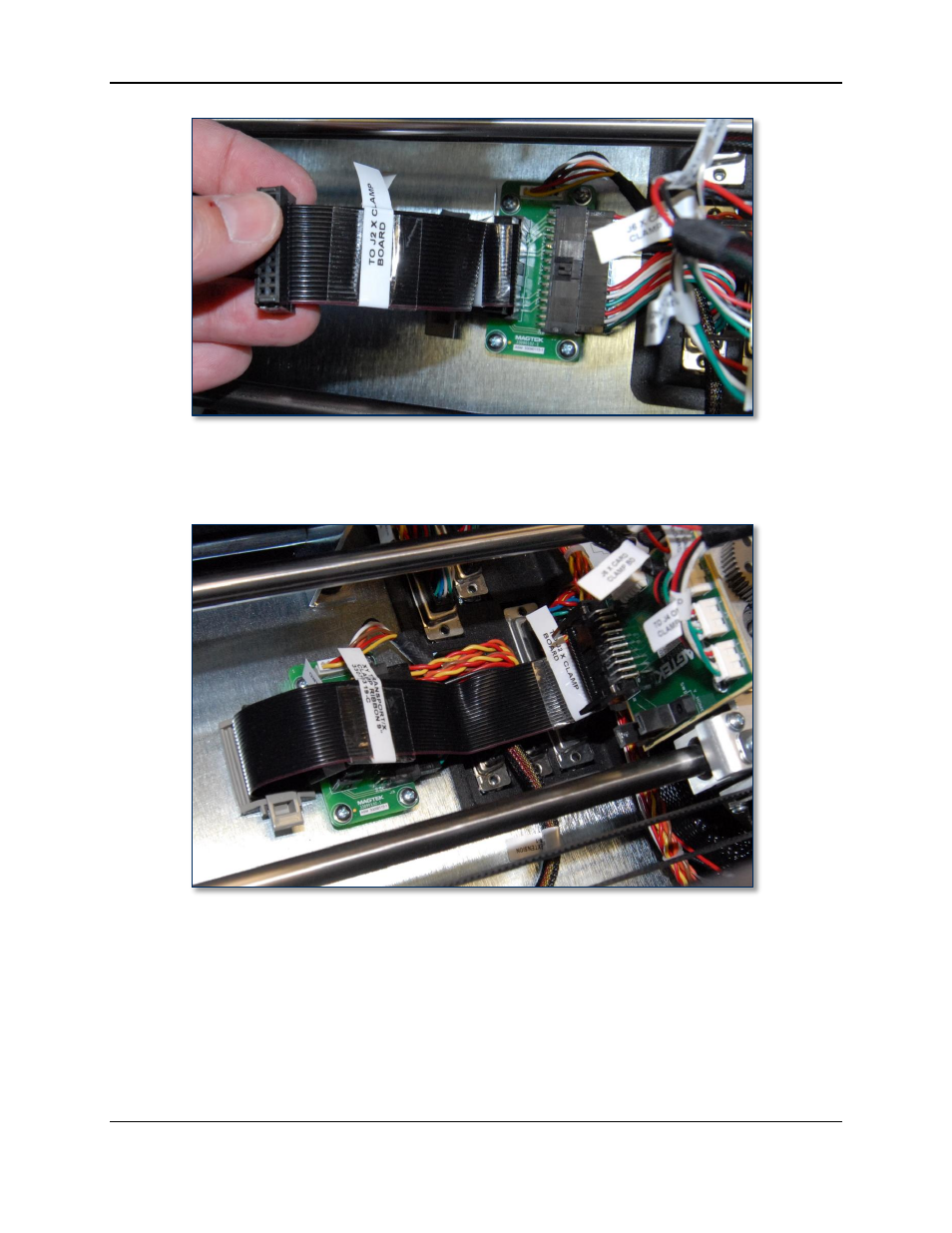

Figure 4-63 - XY Transport End of Ribbon Cable (TOP VIEW FROM LEFT)
4) Connect the cable to the XY transport as shown in Figure 4-64. It should come off the XY transport
toward the front of the device before looping back toward the breakout board.
Figure 4-64 - XY Transport Ribbon Cable Installed (TOP VIEW FROM LEFT)
5) Push the retaining clips down toward the printed circuit board and pinch to lock them in place.
