5 - Adjustments
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 143

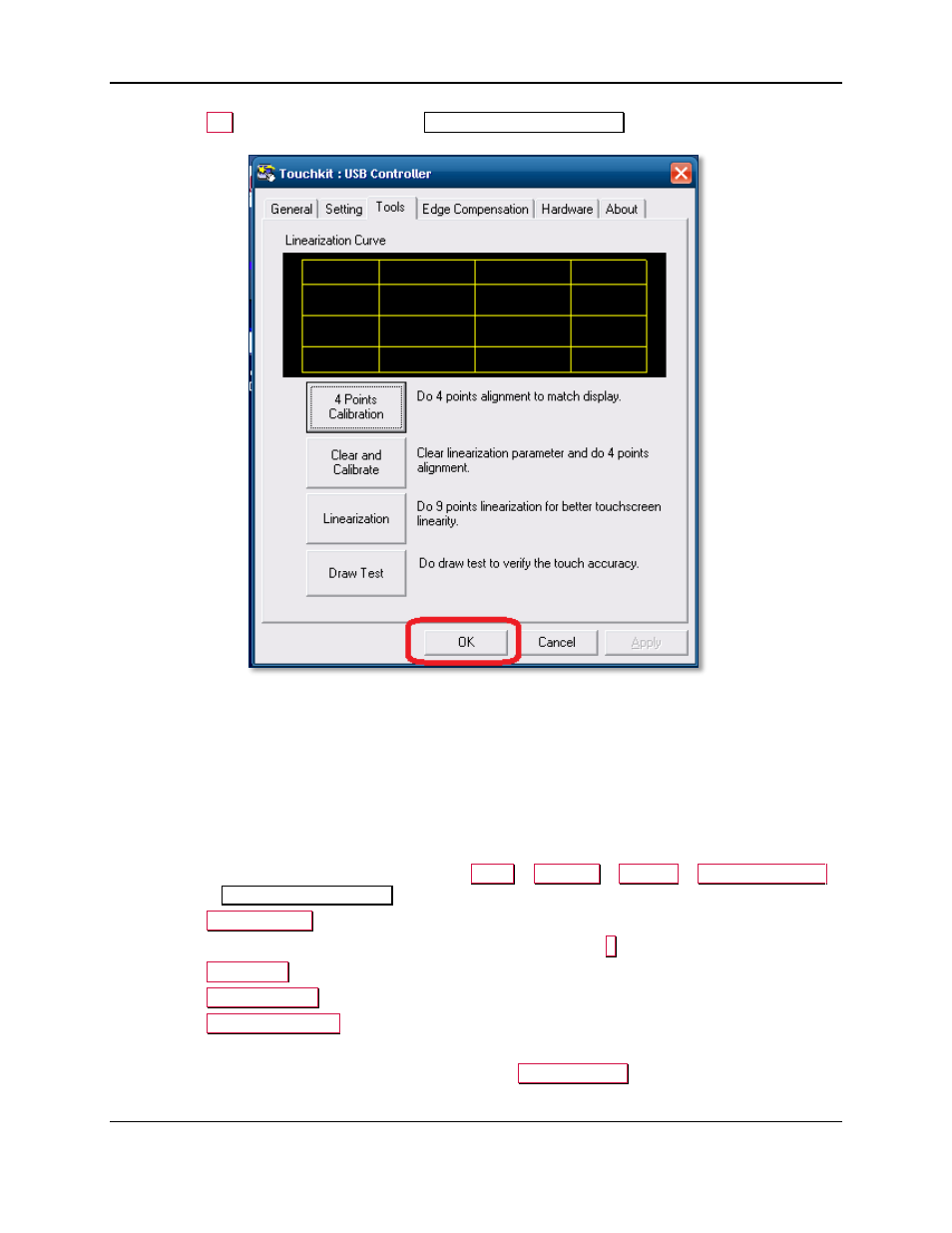

10) Press the OK button at the bottom of the Touchkit : USB Controller window to close it.
5.2 How to Calibrate the Hopper Transport Module
The Hopper Transport keeps several settings that tell it how far to go when it moves from one place to
another. If the Hopper Transport needs to be adjusted, follow the steps in this section.
5.2.1 How to Calibrate Hopper Transport Home to Printer Handoff
To calibrate the Y position of the Hopper Transport during handoff to the printer (from hopper 1), follow
these steps:
1) Remove hopper 2 and hopper 3 from the EC2000 and set them aside.
2) From the ExpressCard 2000 Utility, navigate to Menu > Settings > Service > MCP Commands
to open the Controller Commands page.
3) Press the Shuttle Home button.
4) In the dropdown list next to the “To Hopper” button, select Hopper 1 .
5) Press the To Hopper button.
6) Press the Push to Roller button.
7) Press the Shuttle to Printer button.
8) Check to make sure the card is centered at the opening of the image printer.
9) If the card is centered at the printer opening, press the Roll to Printer button.
