4 - Removal and Re-installation

ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual

Page 47

12) Remove the bushings from the top cover’s two hinges (one on each side) and set them aside with the

cover and the two screws and washers.

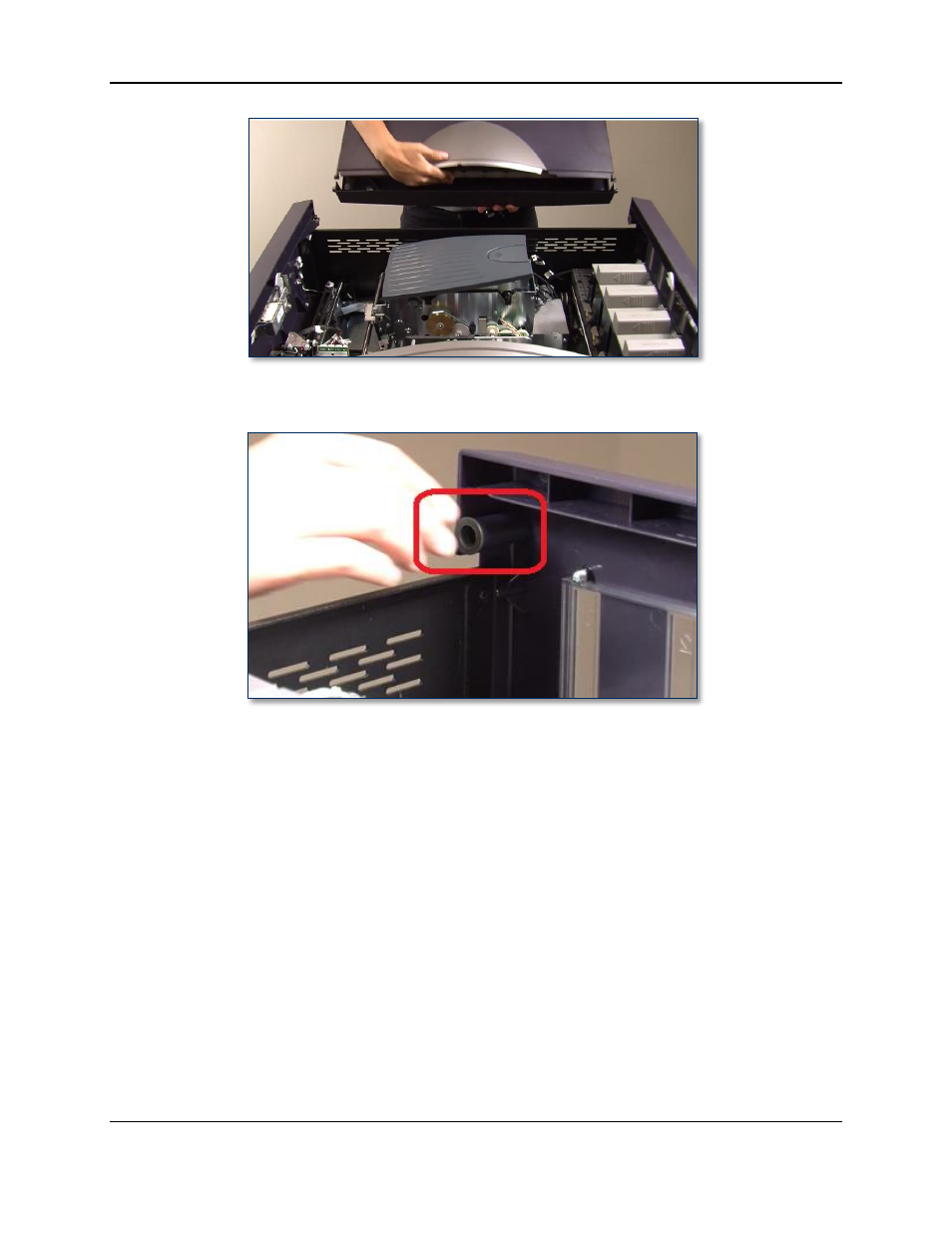

Figure 4-5 - Top Access Door Hinge Bushings (FRONT LEFT VIEW)

To re-install the top access door, reverse the steps for removing it. Be careful not to lose the door’s
bushings, which are not secured to the cover or to the top access door’s hinges.
