Page 51
4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 51

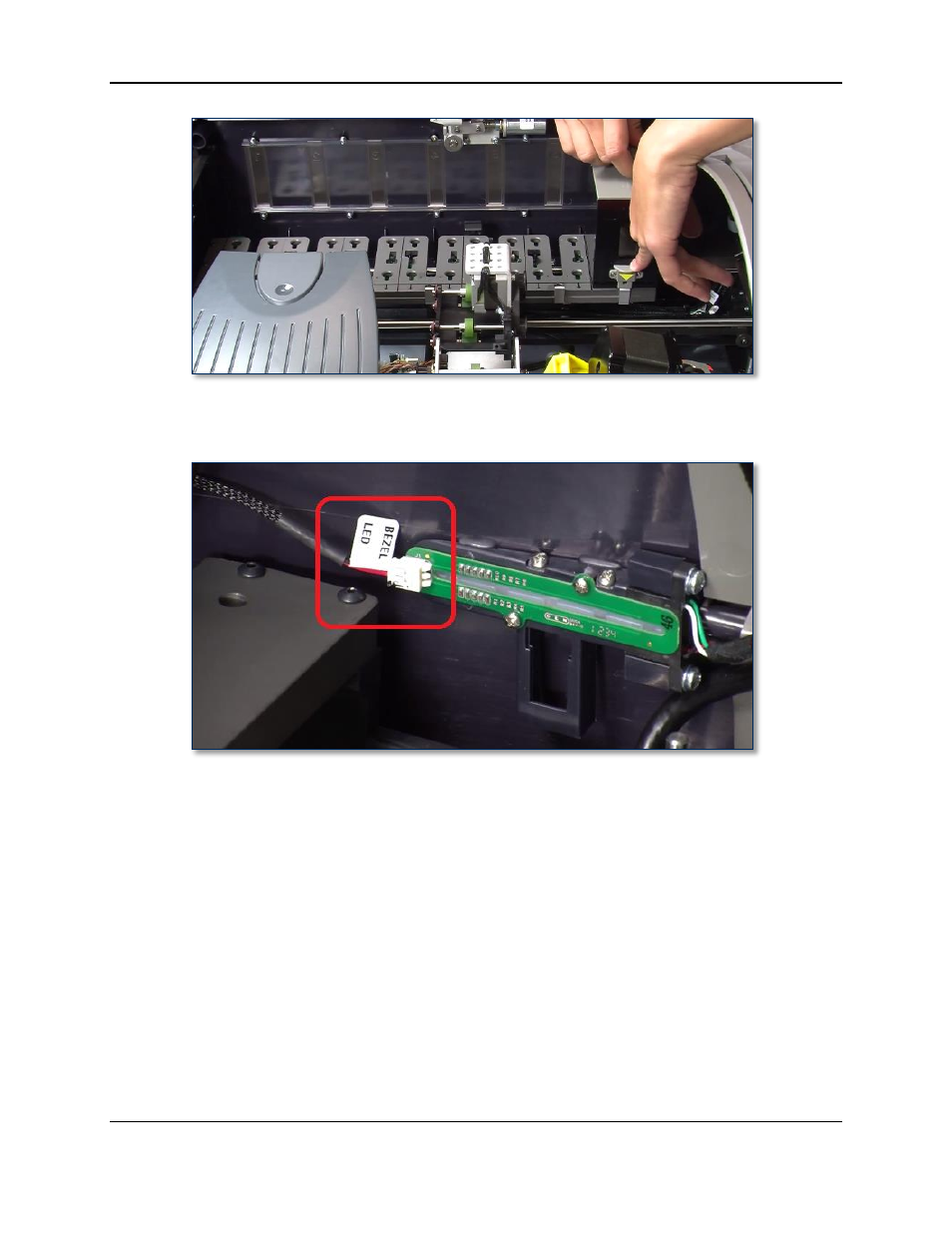

Figure 4-10 - Removing Card Stock Hoppers (LEFT VIEW)
5) Disconnect the BEZEL LED signal cable from the inside of the manual feed slot.
Figure 4-11 - Bezel LED Signal Cable (REAR VIEW)
6) Disconnect the Exception Card Entry sensor cable in the front right corner of the device.
