4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 117
To re-install the embedded PC, reverse the steps you followed to remove it:
1) Re-connect the cables that attach to the left half of the embedded PC (see Figure 4-97), including at
least two ribbon cables connected to COM1 and COM2, and one ribbon cable connected to the multi-
colored front panel connector.
2) If you have connected one or more cables for magnetic stripe readers (identified by a label calling out
Molex headers or by being connected to a header labeled as USB), apply silicone adhesive along the
right edge of each connector to hold it in place as shown in Figure 4-98.

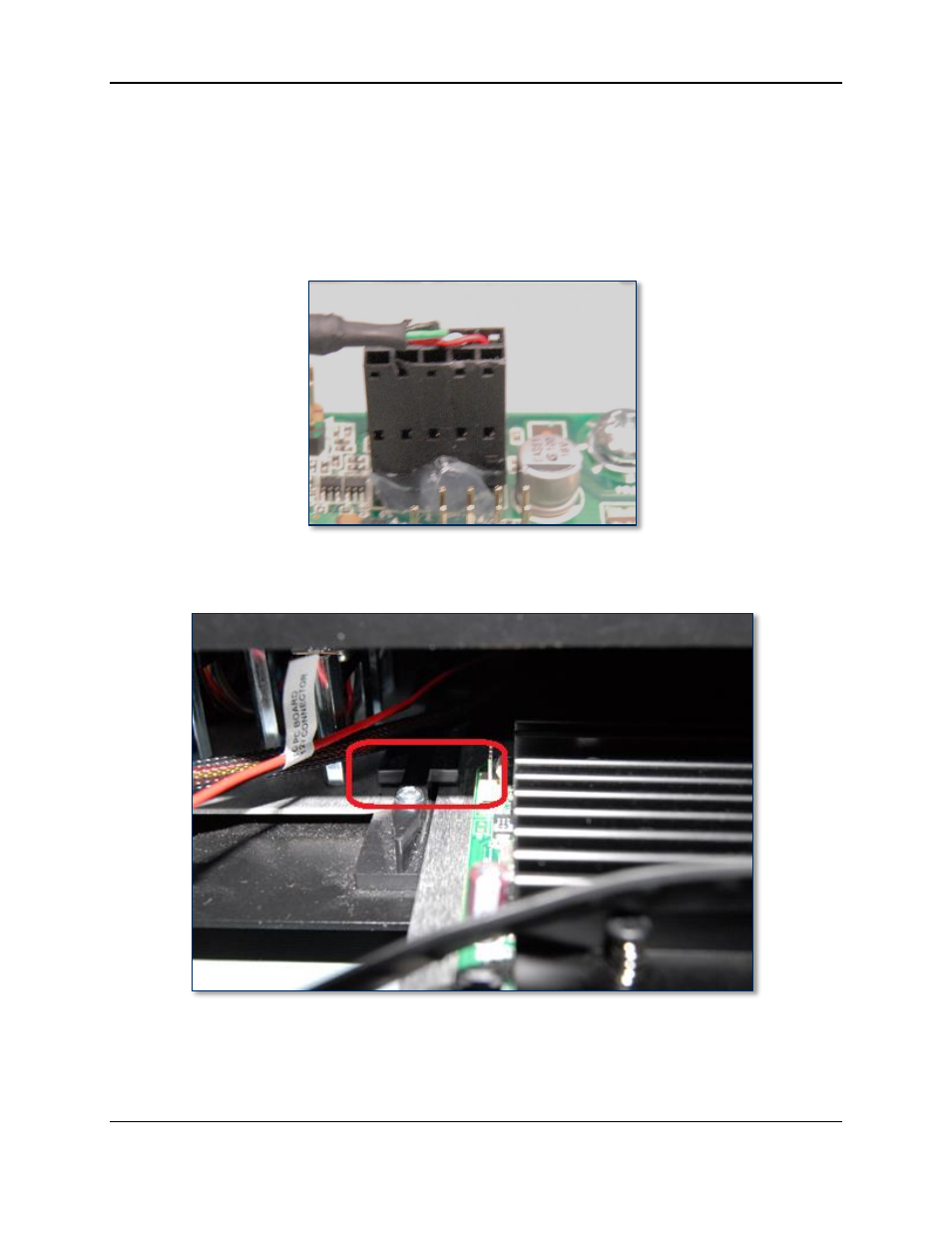

Figure 4-98 - Silicone Adhesive On MSR Connector (RIGHT VIEW)
3) Line up the embedded PC tray with its tracks on the bottom of the lower deck (see Figure 4-99).
Figure 4-99 - Tracks for Embedded PC and Main Logic Board (RIGHT VIEW)
4) Carefully push the embedded PC back into the device until only the connectors along its right edge
are exposed (see Figure 4-94). While pushing, use a flashlight and other tools as appropriate to make
sure its cables do not snag inside the device.
