4 - Removal and Re-installation
ExpressCard 2000| Instant Issuance Card Personalization System | Hardware Service Manual
Page 132
5) Locate the power supply in the rear of the device behind the left side access door.

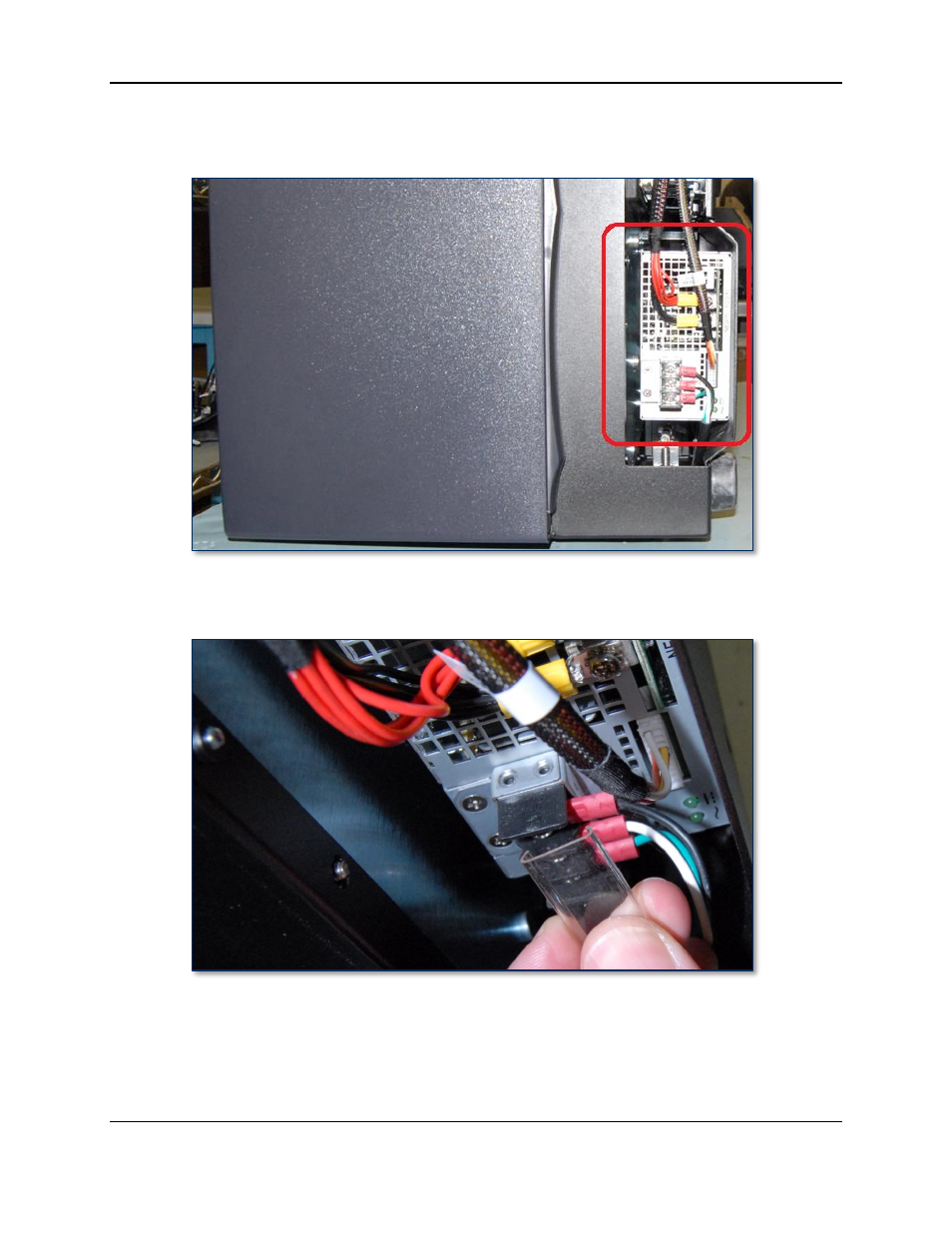

Figure 4-118 - Power Supply (LEFT SIDE VIEW)
6) Remove the clear plastic cover that protects the power supply inputs.
7) Use the No. 2 Philips screwdriver to loosen the screws that secure the three power input wires to the
power supply, then disconnect the wires.
