2. Choose the number of lines to be added and the Line Type, Master or Target, in
the number of lines dialog.

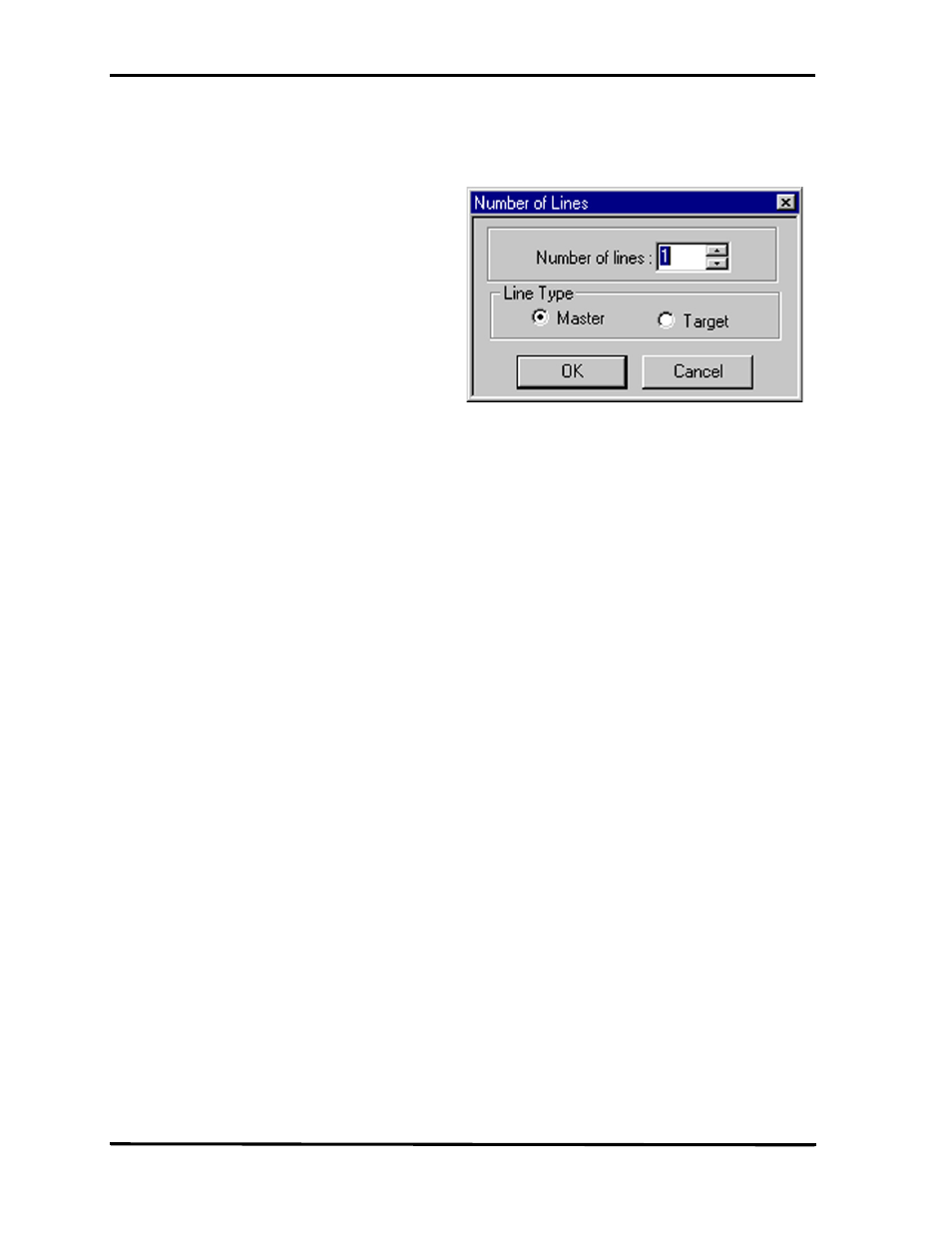

Figure 78 Number of Lines Dialog Box
Insert Program Line To insert a new program line between previously added active program
lines, position the cursor below the line where you want to insert the new
line and click the Insert button.
3. Select a command such as MEM Write from the command dropdown list for
each active program line. Commands differ PCI vs. PCI-X.
Available PCI Exerciser Commands:
Interrupt ACK
Special Cycle
I/O Read
I/O Write
MEM Read
MEM Write
CONFIG Read
CONFIG Write
MEM Read Multiple
MEM Read Line
MW & Invalidate
Data Transfer
DAC : I/O Read
DAC : I/O Write
DAC : MEM Read
DAC : MEM Write
DAC : MEM Read Multi
DAC : MEM Read Line
DAC : MW & Invalidate
Data Transfer
TA700/800 to Transfer data as Target without termination
and complete as expected.
