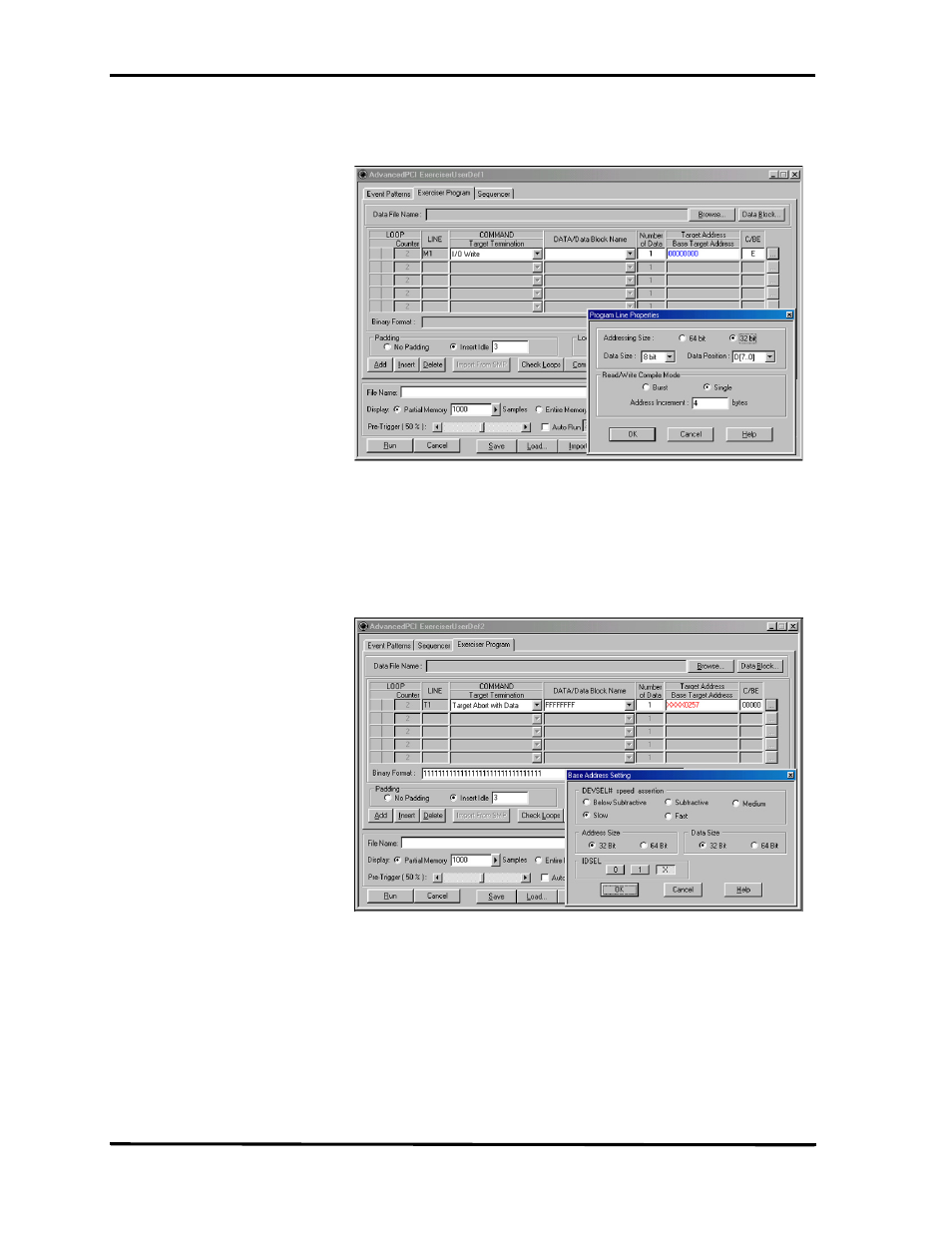

Figure 79 Setting 32/64 bit Addressing Mode
TA700/800 Address as Target When a Target command is chosen from the available COMMAND
list, clicking the ellipses button opens the Base Address Setting Dialog
Box.
Figure 80 Target Base Address Setting
DEVSEL# Speed Assertion Specifies DEVSEL# response speed when operating as a target.
Fast (Not supported at this time) target responds within 1 clock period.
Medium target responds within 2 clock periods. (Supported @ 33MHz
only)
Slow target responds within 3 clock periods.
