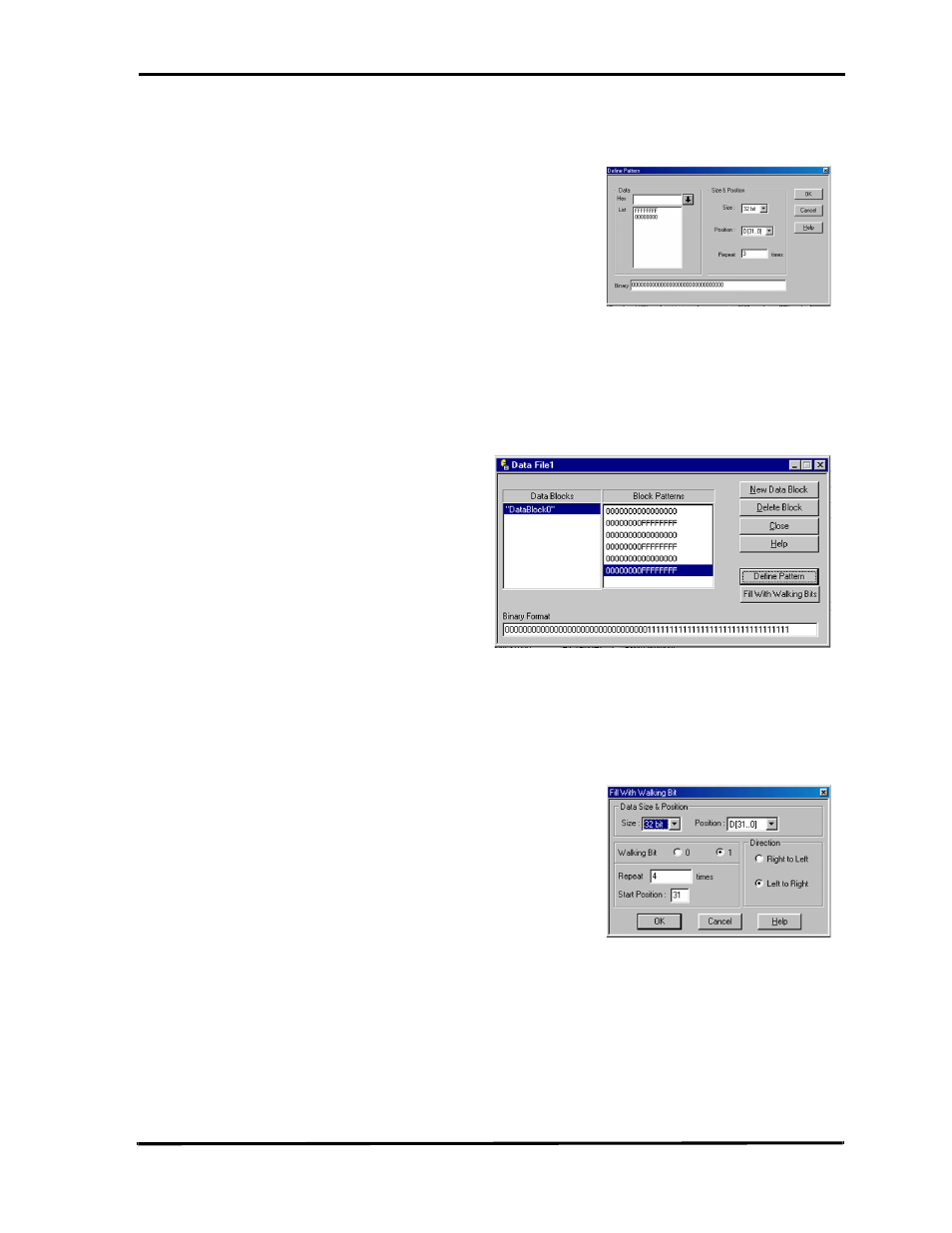

Figure 34 Define Multiple Line Pattern
Figure 35 shows the resulting block pattern where the defined pattern is replicated 3
times.
Figure 35 Resulting Multiple Line Pattern
Walking Data Pattern Click the Fill With Walking Bits button to open the Fill With Walking
Bits dialog box as shown in Figure 36.
Figure 36 Fill With Walking Bits Dialog Box
Enter the walking bit options desired and the number of times the data pattern is to be
written and click OK.
Figure 37 is an example of a walking bit “1” set in a direction of left to right to be
written 4 times.
