APPENDIX B Catalyst Enterprises, Inc.
225
APPENDIX B
TA700 PCI Card

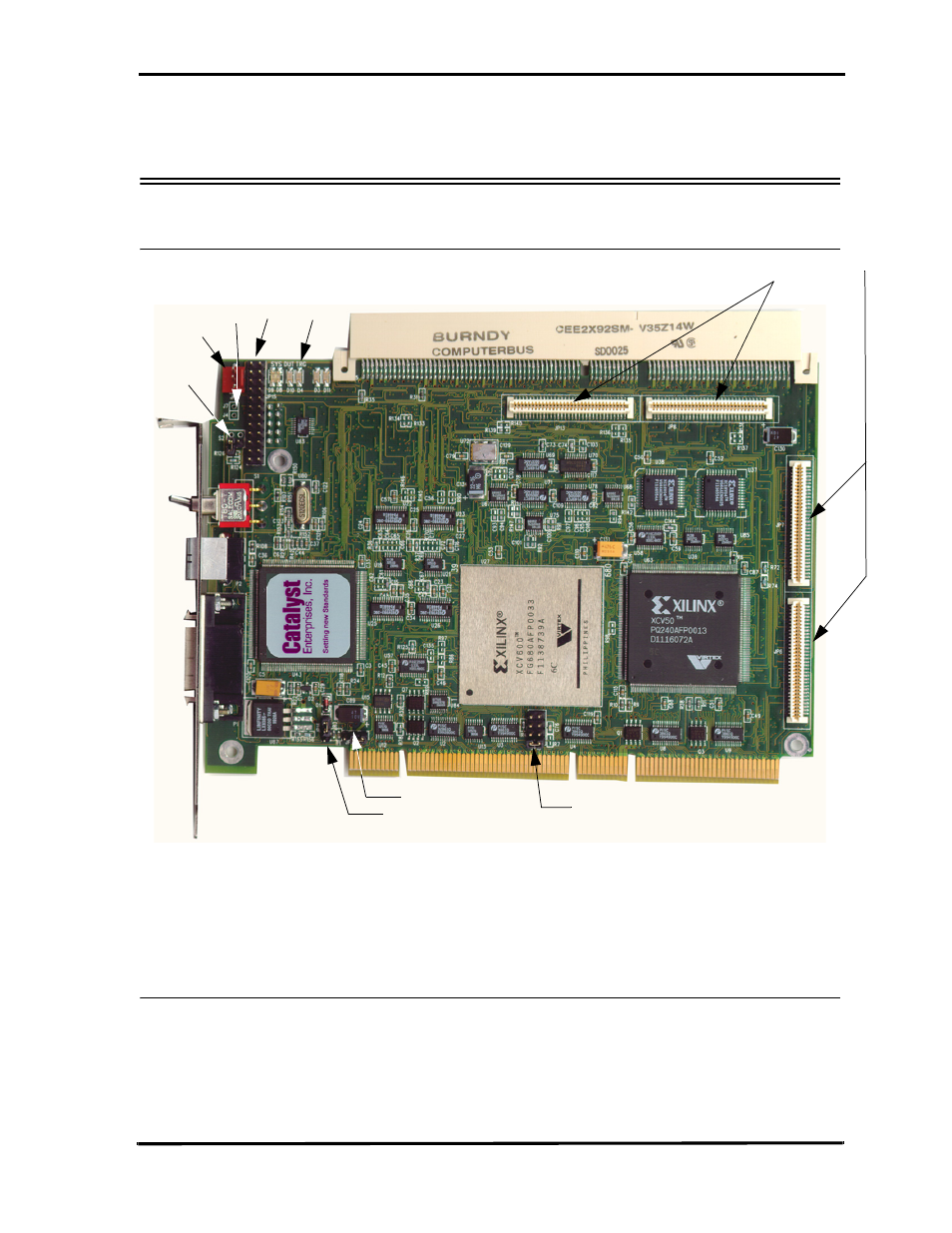

Figure 158 TA700 PCI Analyzer Card
TA700 PCI Analyzer card supports all available features. The features are enabled
with the access code as described in “Authorization” on page 22.
Status LED Function Description
SYS When green it indicates that the system and DUT voltages are within 5% of their nominal
values. If any of +5V, 3.3V, +12V drop by more than 5%, the SYS LED turns red. Upon
power on it comes up red during a power self test and turns green when the software
executes.
JP1
JP2
JP16
JP10
S2
Jumper
J7, J4 JP15 LED’s
Memory Expansion
