Catalyst Enterprises, Inc. Special Setups
162
Number of Errors
Detected errors are displayed as an ERROR signal name in red in the display window
if the signal ERROR has been selected for display on the screen.

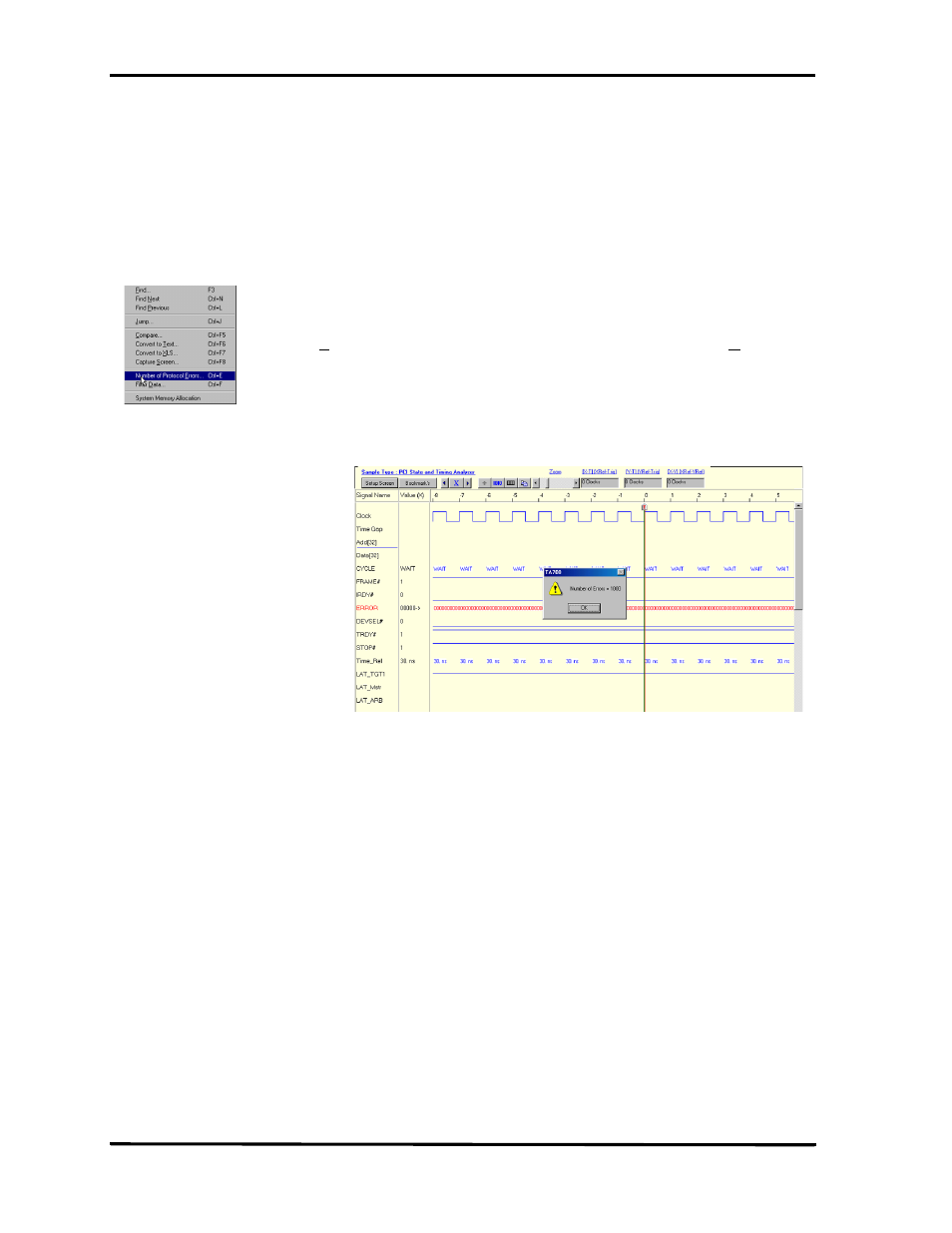

Figure 145 Number of Errors Display
Protocol Error Type
To view the type of the detected protocol error in either a list or wave display you
must make sure that the ERROR signal has been added to the display. Figure 146
illustrates a typical protocol error wave display with the ERROR signal added. The
error appears as a red number on the error signal line where it occurred in synch with
the rest of the PCI bus signals. To determine the protocol error type triggered on,
double click on the red NUMBER to open the detected protocol error message shown
in Figure 147.
To determine the total number of errors encountered in the entire captured data
file click Tools on the analyzer menu bar and then select Number of Errors to
open the number of errors display box as shown in Figure 145.
