Custom Capture Data Project Catalyst Enterprises, Inc.
87
Subtractive target responds between the 5th and 6th clock period.
Below subtractive target responds between the 6th and 7th clock period.
In cases where a target response to a specific command is required the C/BE entry
must be set to that command. C/BE commands are chosen from the C/BE dialog.

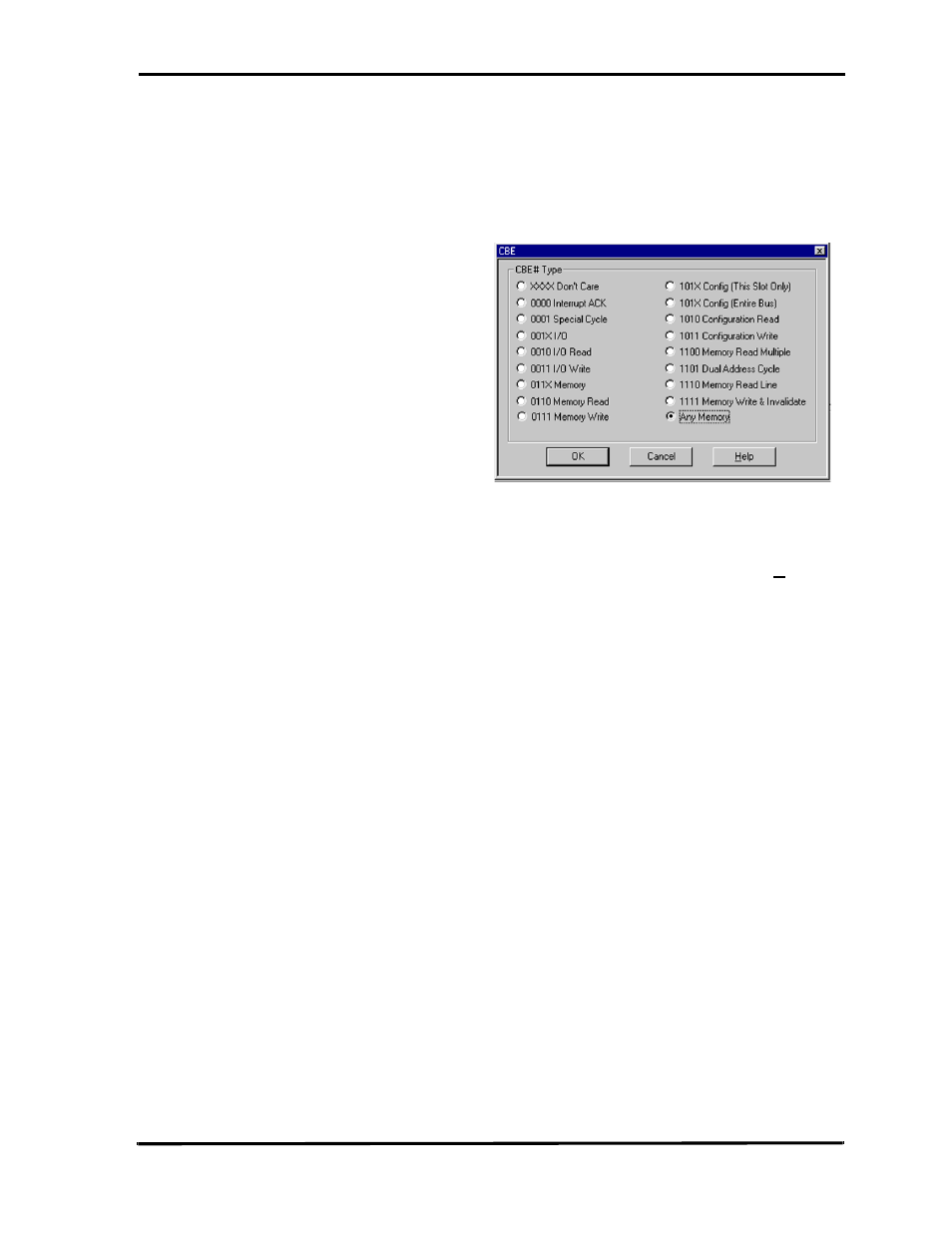

Figure 81 C/BE Set to Respond to Any Memory Command
Burst Data Writes For burst data write operations requiring multiple data you may select a
previously created data file from a list of Data Files by clicking Browse
and selecting a pre-defined data file, or create a new data file by clicking
Data Block. See Creating a Data Block File on page 44.
Padding/Bus Utilization Checking Insert Idle and entering the number of idles desired will insert
Idle states at the end of each compiled command. See Figure 82. Adding
idles at the end of commands allows the TA700/800 to be precisely
controlled on how long it will utilize the bus.
5. Set Exerciser options as described in Setting Exerciser Options on page 90.
6. When done, click Compile . . . to generate and view the executable exercise
code as displayed in Figure 82.
