Catalyst Enterprises, Inc. Configuration Menu
24
Configuration Space Information
At power up the TA700/800 is automatically configured as a PCI agent and is setup to
allow the system to see the configuration. However, once the Analyzer/Exerciser is
programmed, the configuration space is hidden from the BIOS or any other agent
trying to access the TA700/800 space configuration. The initial configuration space is
stored by the software as shown below.

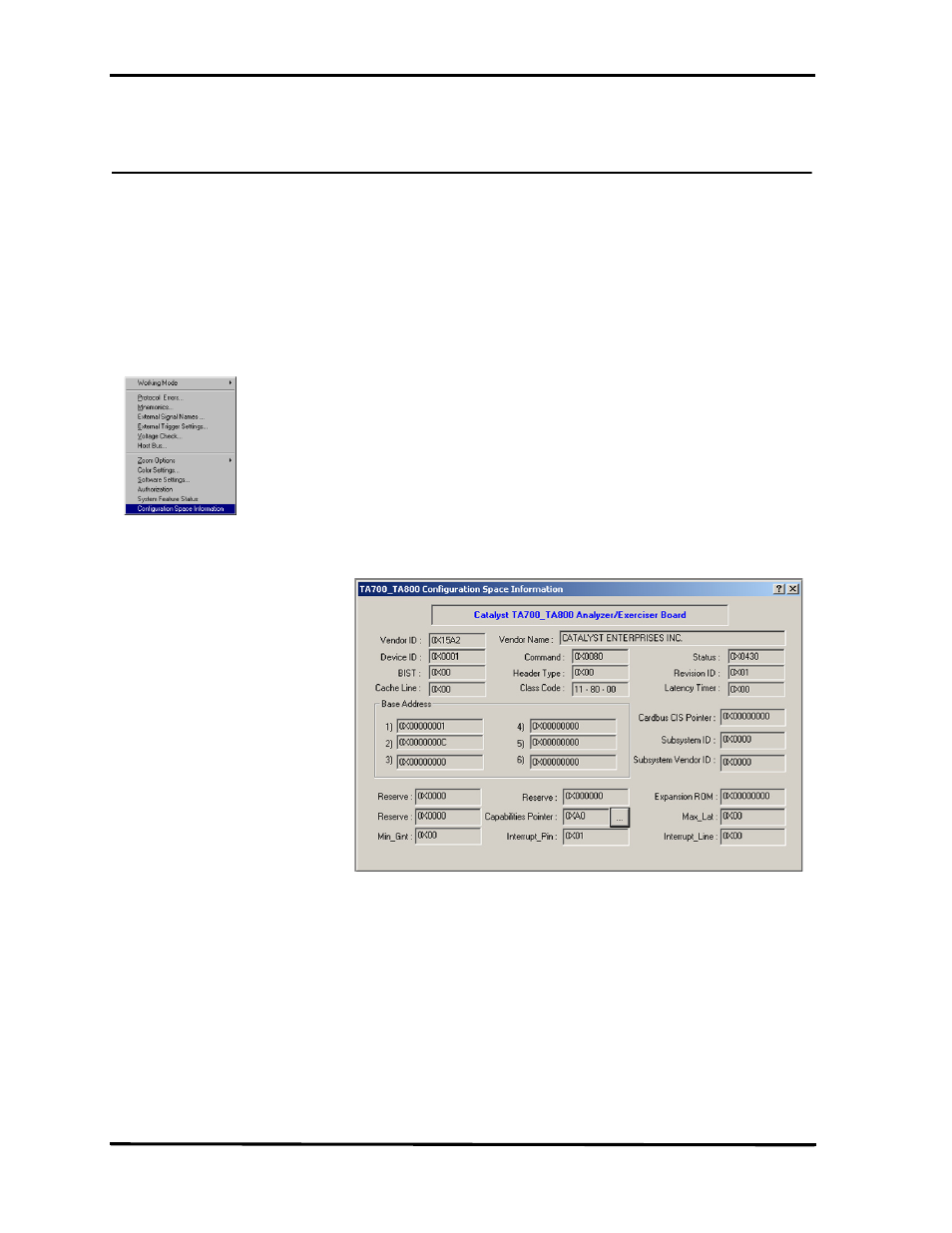

Figure 12 Configuration Space Information Display
Note: Configuration space information from the TA700/800 board is available only at
power on time and is not available after the board has been configured.
Click Configuration on the main menu bar and then select Configuration
Space Information to open the Configuration Space Information Display.
