Display Manipulation Catalyst Enterprises, Inc.
139
will cause a display in the [Y-T](YRef-Trig) box to show the difference in
clocks, or if selected, time, between the trigger and the Y cursor. The
difference between the X cursor and the Y cursor is shown in the
[X-Y](XRef-YRef) box as well.
Time vs. Clocks Display To display differences in clocks or time select Show Differences in Time
or Show Differences in Clock from the Active Signals Dialog box as
desired. See Figure 118.
Jump Within Data Display
You may quickly jump within a data display relative to the start position, trigger
position or cursor positions, using the Jump option.

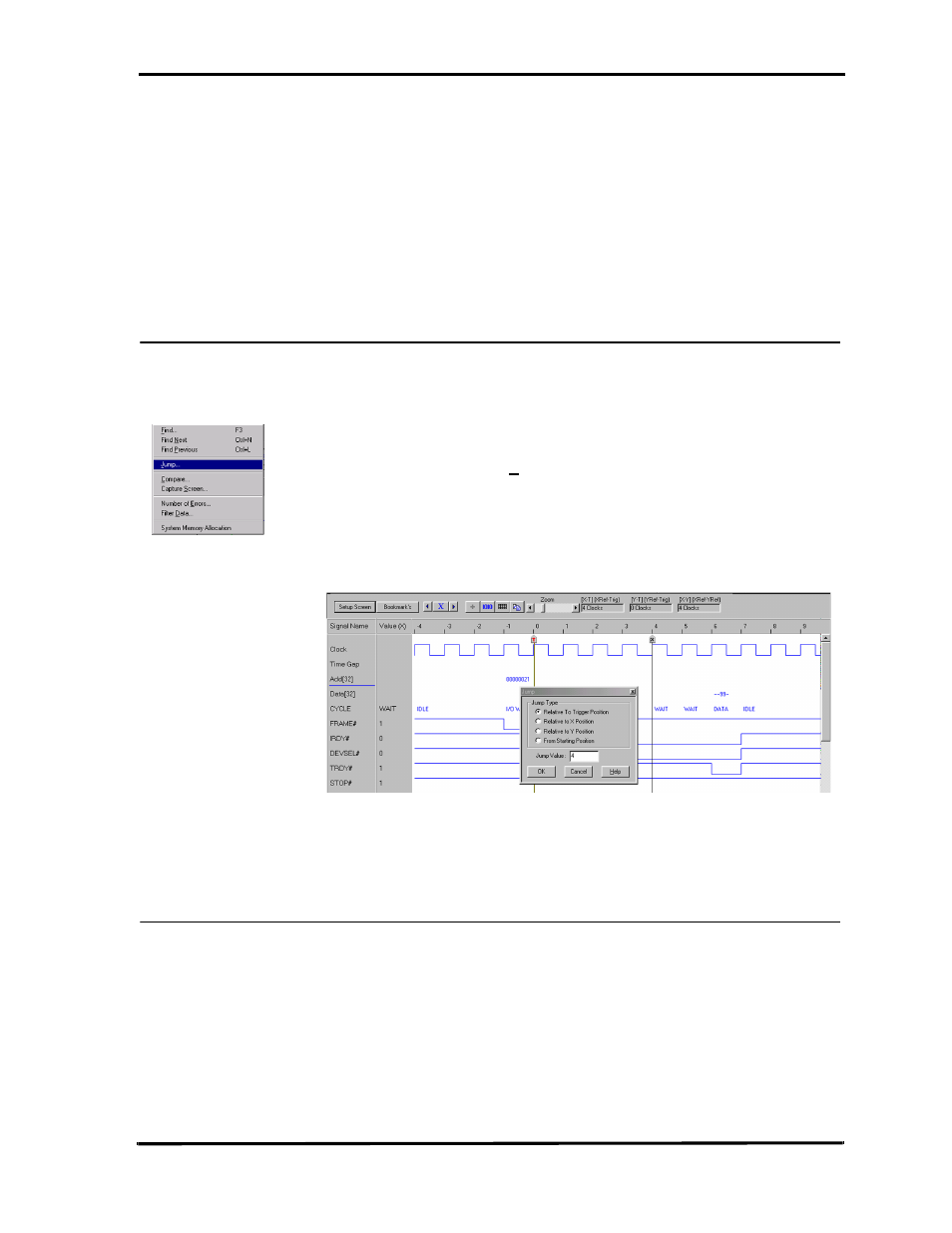

Figure 128 Selecting a Jump Option
Select the desired jump option, enter the desired distance for the jump and click OK.
Using Zoom in the Wave Window
Zoom is available only in the wave window and permits you to scale the display by a
factor of 0.1 to 10. To zoom the display you may click on and drag the zoom slider to
a zoom position or simply click to the right of the slider button to zoom in and to the
left of the slider button to zoom out.
To jump within the display click Tools on the menu bar and then select Jump to
open the Jump Dialog box.
