Custom Capture Data Project Catalyst Enterprises, Inc.
79
Programming the Sequencer With Menu Form

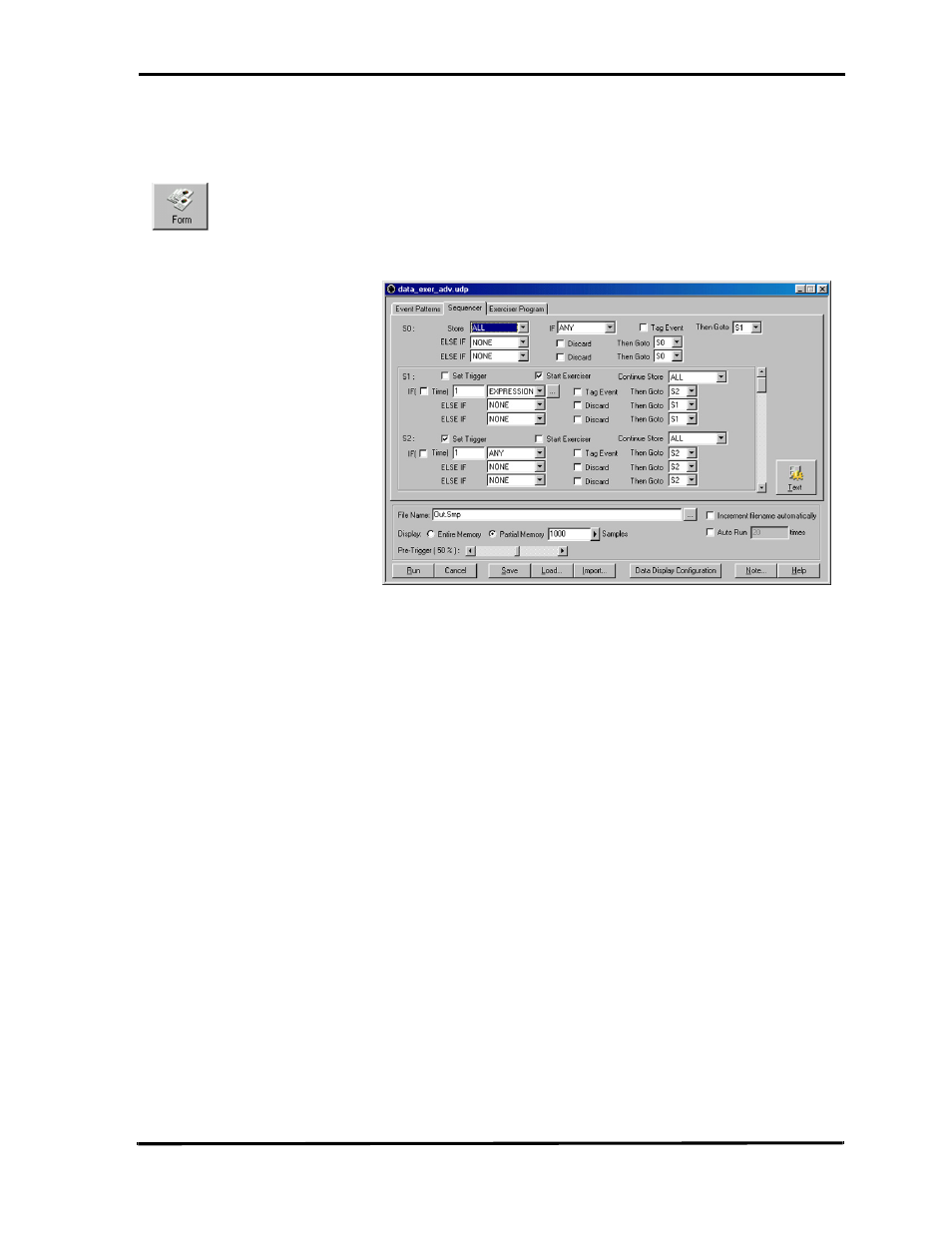

Figure 72 Sequencer Menu Form Style Programming Dialog Box
Unlimited Else If The menu form allows only 2 Else If statements but in the Text Form the
user may add as many Else If statements as desired.
To View and Program As Text Click the Text button on the Sequencer Form menu.
Pre-Trigger
The Sequencer menu includes a Pre-trigger xx% function which lets you
set the percent of data to be captured before and after the triggering event.
This percentage is set by default to 50%. For more details see “Set
Trigger” on page 81
The Sequencer definition dialog box shown Figure 72 displays the programmable
states as follows:
S0 The starting state, displayed always.
S1 - S31 These states can be viewed and programmed two
at a time by using the scroll bar on the right side
of the screen.
Tag and Discard Tag and Discard allows the user to delete a portion of the capture memory.
Setting Tag places a marker in capture memory and setting Discard causes
the deletion of all captured data between Tag and Discard.
Click the ellipses after If [Event_A occurs] ”...” and choose Tag_Event at the point
after which you expect a result. Then click the ellipses after ElseIf [Event_B occurs]
”...” in the state where you expect the result and choose Discard. Data will be
discarded between the last Tag_Event set and the Discard set.
To program the sequencer with a menu form click the Form button in the
Sequencer programming window to open the form window as shown in Figure
72.
