Easy Mode Catalyst Enterprises, Inc.
53

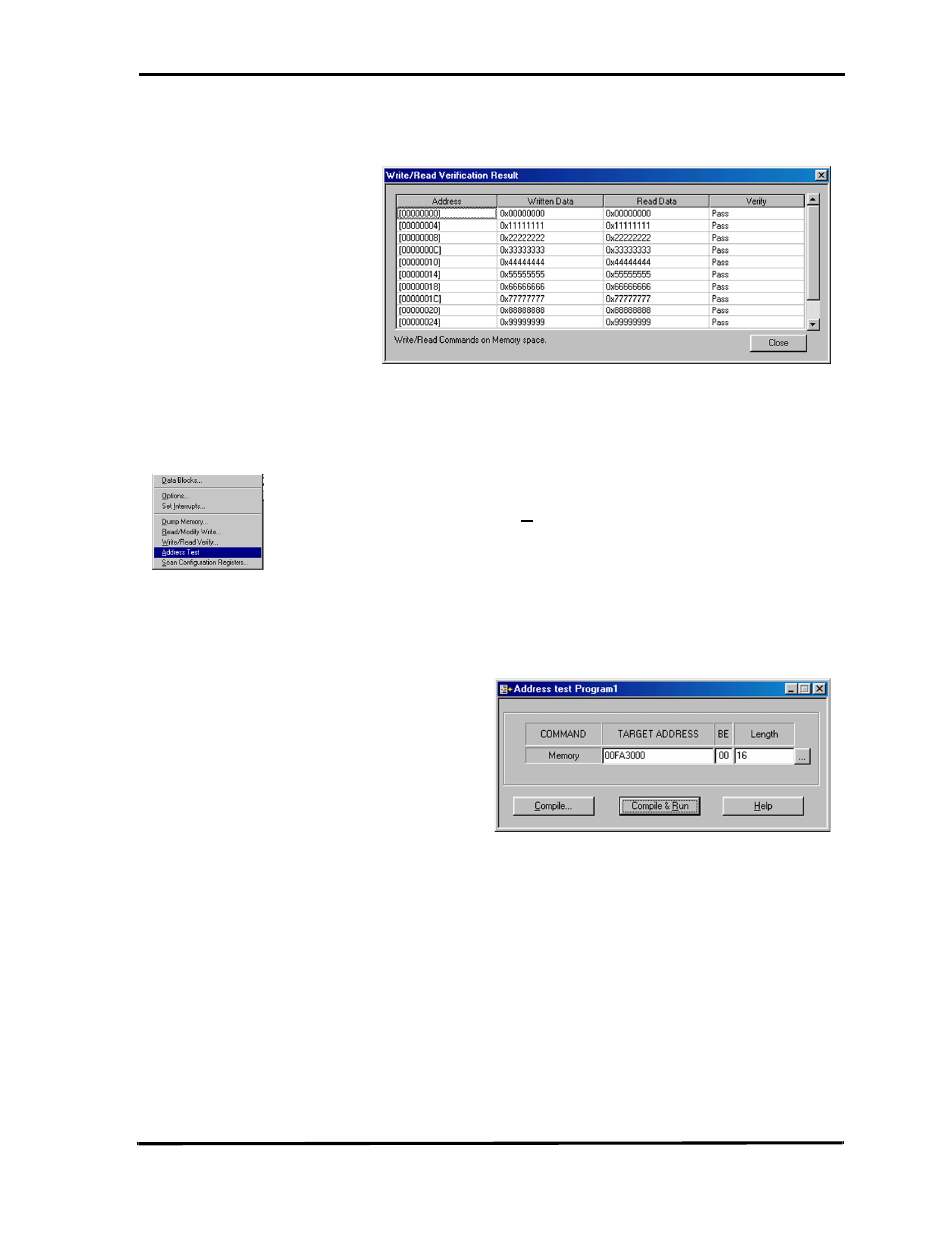

Figure 44 Write/Read Verification Result
Address Test
1. Enter the starting address to be tested and the number of addresses (Length) to
be tested.
Figure 45 Address Test Program Dialog Box
2. Click the ellipses button next to the Length edit box to set the Read/Write
properties, click OK and then Compile & Run. The test results are displayed as
in Figure 47.
To perform an Address Test select Address Test from the Exerciser dropdown
list on the menu bar to open the Address Test Program dialog box.
