Scan Configuration Registers
The system will search for PCI devices on the bus and display the configuration as
shown in Figure 48. All devices on the bus are reported. To see information on
additional devices click Next>.

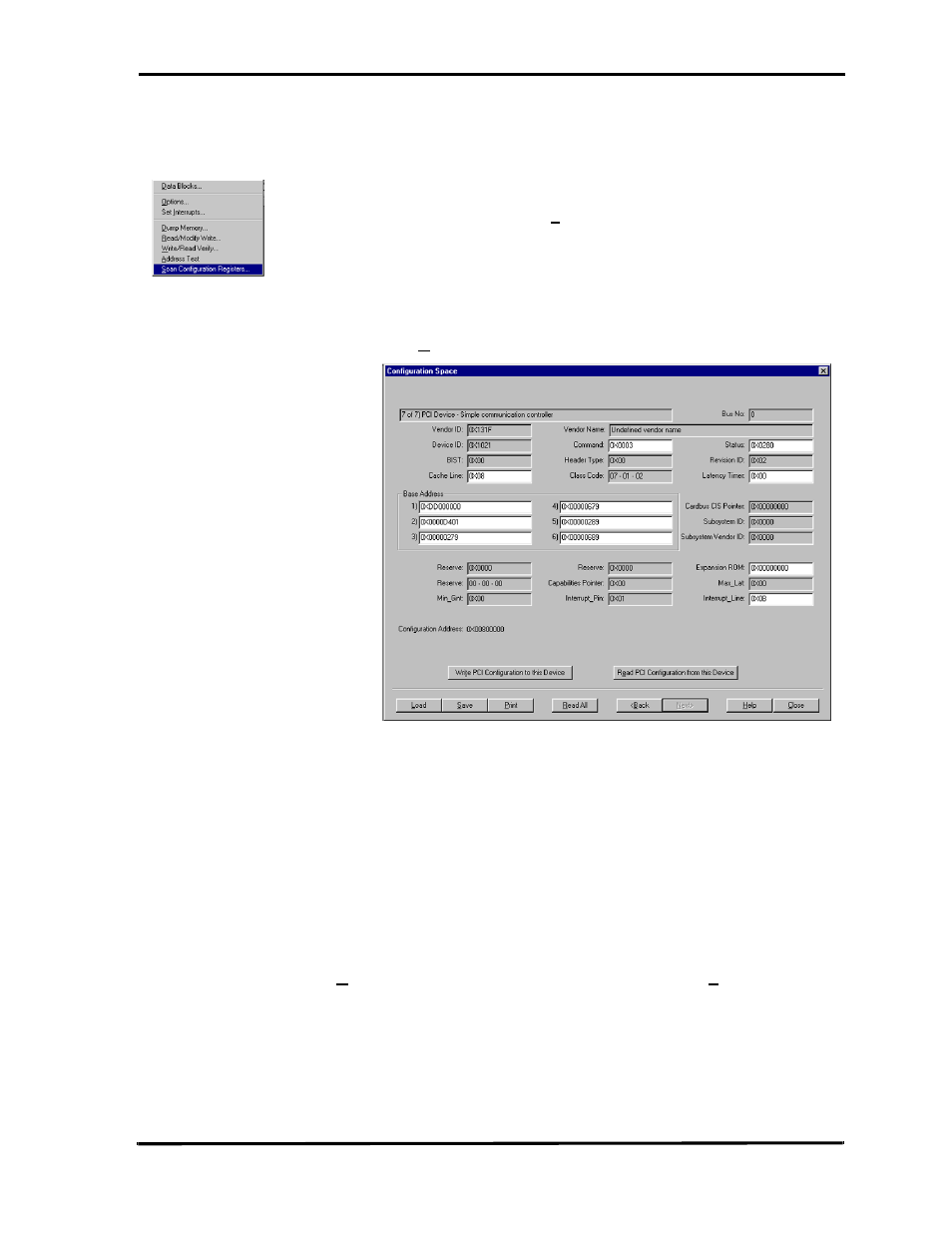

Figure 48 Configuration Header Display Dialog Box
You may edit all of the parameters displayed in white, if your hardware allows it. Edit
the field and then click on the “Write PCI Configuration to this Device” button.
To save configuration read all devices, find your device and save it to a file.
PCI 2.1 or PCI 2.2 Specification
Scan check may be performed to either the PCI 2.1 or PCI 2.2
specification. The selection of which specification is made on the
Software Global Settings dialog box. To set these options click
Configuration on the main menu bar and then choose Software Settings.
To perform a configuration scan select Scan Configuration Registers from the
Exerciser dropdown list on the menu bar.
