Catalyst Enterprises, Inc. Display Manipulation
134
PCI-X Attribute Display To display PCI-X attributes you must include them in the Active Signals
list. Click the Setup Screen button in a PCI-X sample window to open the
Active Signals dialog box.

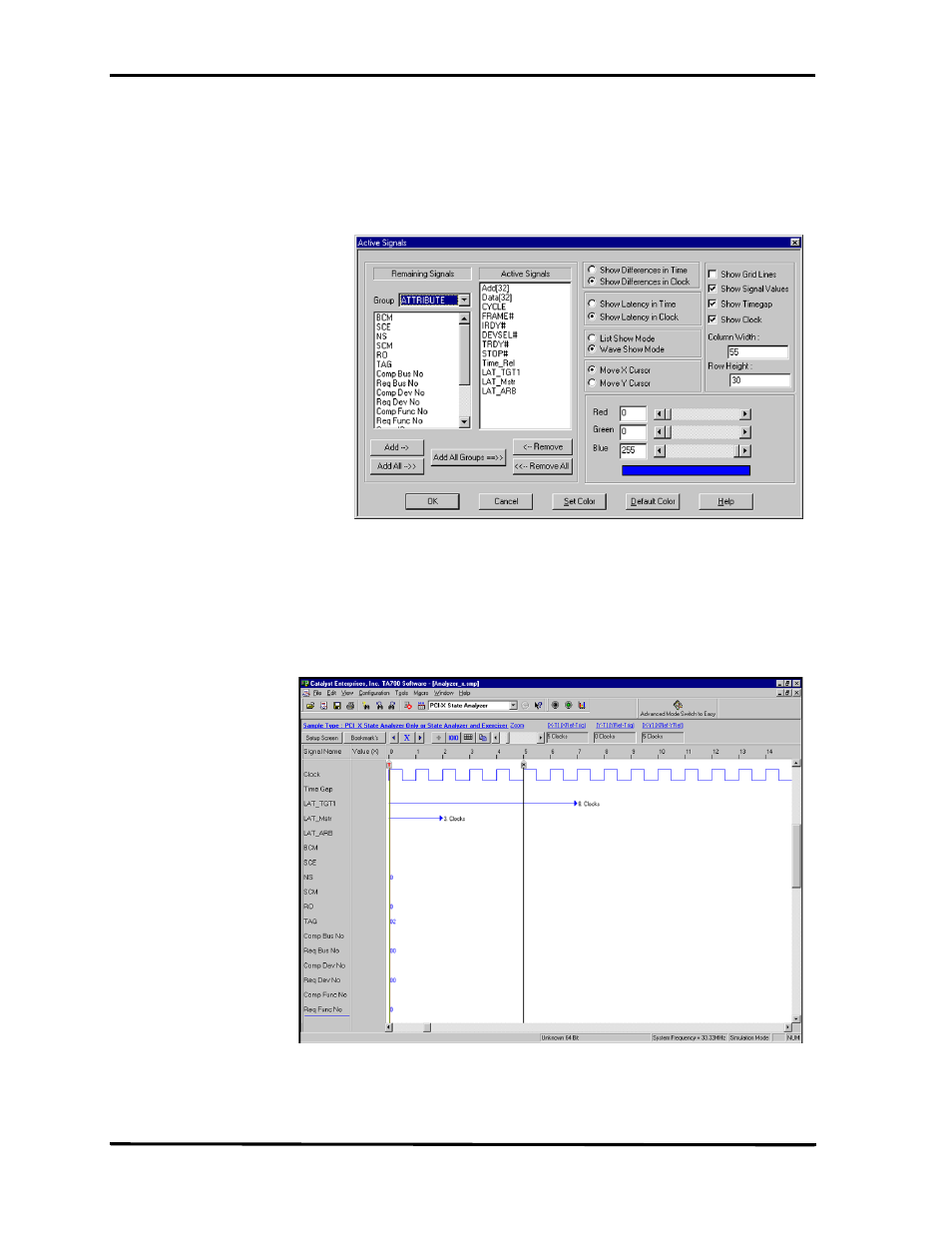

Figure 121 Select PCI-X Attributes for Display
Click the down arrow in the Group drop down box and choose Attribute. Select
individual attributes and click the Add->> button or click the Add All->> button to
move the signals to the Active Signal list. Click OK when done.
Figure 122 PCI-X Attribute Display
