Catalyst Enterprises, Inc. Easy Mode
44

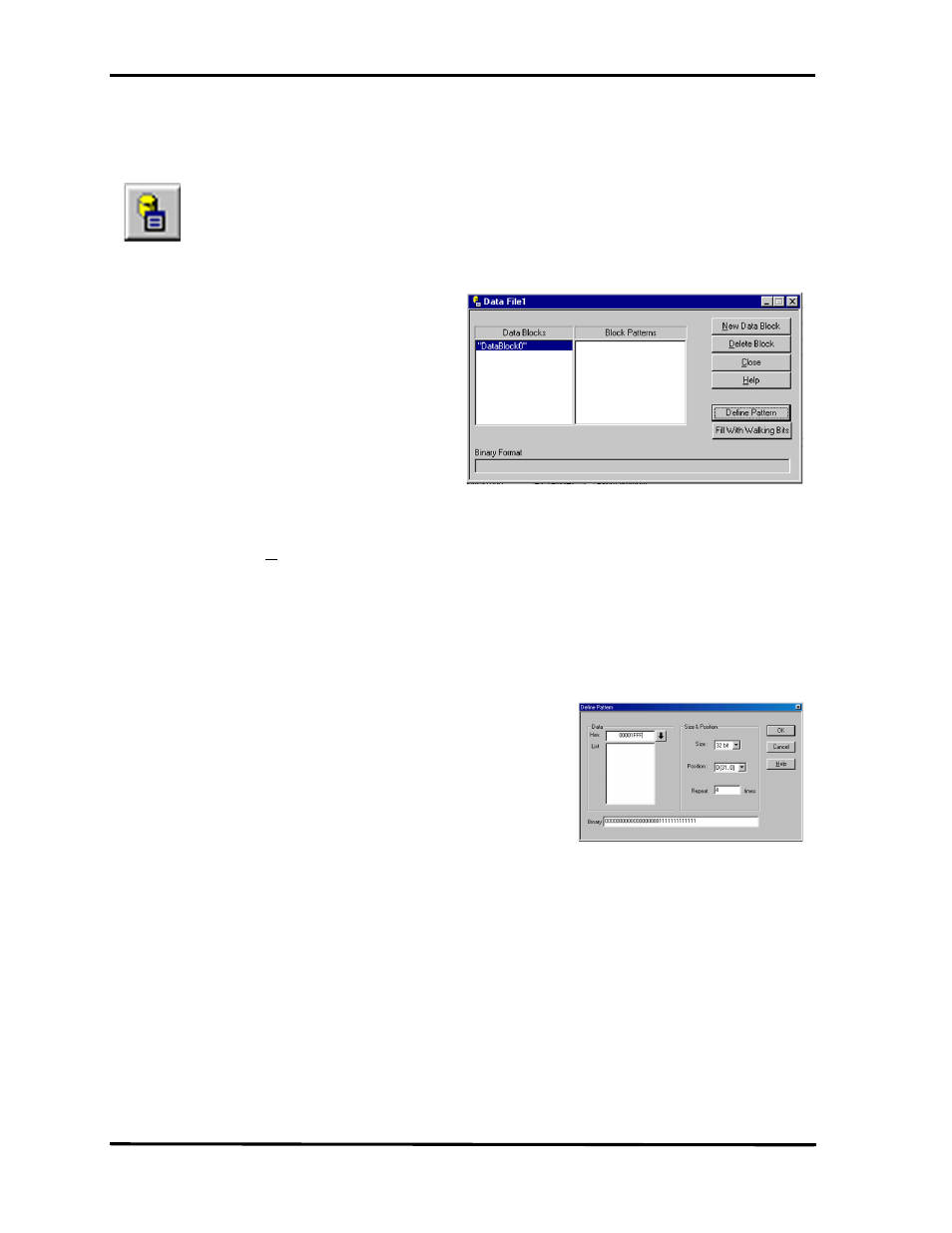

Creating a Data Block File
Figure 32 Data File Definition Dialog Box
Click New Data Block in the Data File Definition dialog box to enter a data block
(“Data Block 0”) in the Data Blocks area. With the new data block highlighted you
may define a specific block pattern or create a walking bit type pattern.
Fixed Data Pattern Click the Define Pattern button to open the Define Data Pattern dialog
box.
Figure 33 Define Data Pattern Dialog Box
Enter a pattern and select the number of times that pattern is to be repeated and click
OK.
Multiple Line Pattern You may define a block of multiple lines that can be automatically
repeated. Figure 34 shows the definition of a two line pattern to be
repeated 3 times. To add a new line, enter the data in the edit box and then
click on the down arrow to include it in the list.
To create an exerciser data file click the Data Block Icon on the Main Menu bar
to open the Data File dialog box shown in Figure 32.
