Catalyst Enterprises, Inc. Custom Capture Data Project
68
Creating an Event Pattern
Click the Event Patterns tab to open the Event Pattern Definition dialog box.

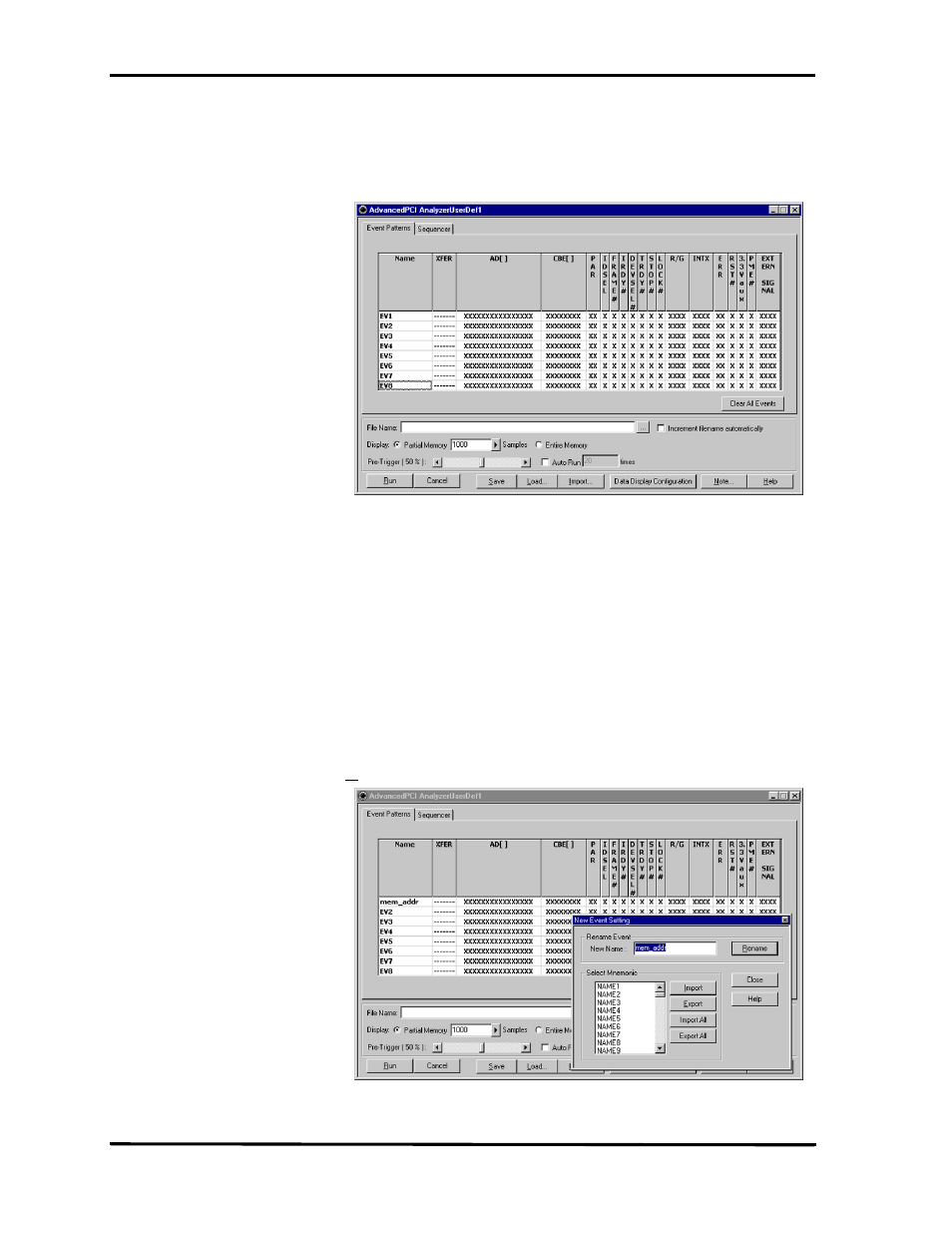

Figure 58 PCI Event Pattern Definition Dialog Box
To enter a parameter or edit a previously entered parameter, double-click in the
appropriate data field to open a corresponding dialog box, enter the required data, and
click OK. The changes entered will be reflected in the edited data field.
Keyboard Edit You may also edit all of the data fields by using the keyboard by moving
through the available data fields using the arrow keys and pressing Enter
on the desired field to either open the associated dialog box or to change
the contents from X to 0 to 1.
Name an Event For example, to define EV1 as mem_addr, double click in the EV1 field
to open the New Event Setting dialog, enter the new event name and
click Rename.
Figure 59 Naming an Event
