Data Capture & Trigger Examples

The capture data and trigger dialog box changes depending on the type of Trigger On
chosen. The following are some examples.

Signal on shorter than nnn times. With this Trigger selection you must choose a signal from the xxx

dropdown list and specify the number of times in the nnn edit
box.

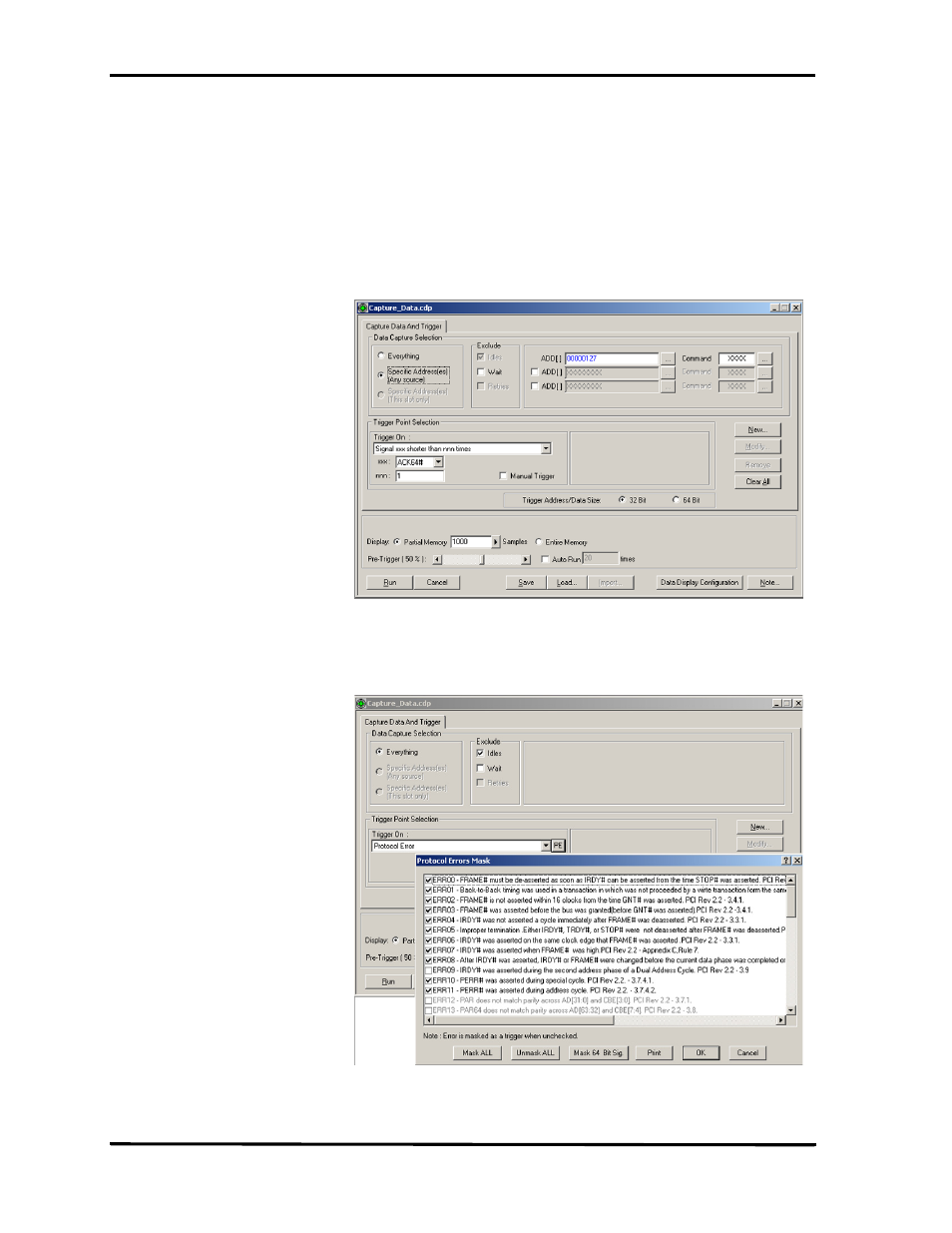

Figure 20 Specify Signal And Number of Times

Protocol Errors

When this Trigger On selection is chosen, note the PE button next to the
Trigger On list box. Clicking this button opens the Protocol Error mask.

Figure 21 Trigger on Protocol Error
