After clicking Verify Status, the status column will display green LED for monitored
voltages that are within tolerance. A red LED indication signifies an out of tolerance
or missing voltage.
Verify that the SYS LED turns green signifying that the checked voltages are within
5% of their required values.
Host Bus
The TA700 hardware identifies the host bus type automatically at the
occurrence of the rising edge of the host bus RST# and displays the result on
the Status Bar at the bottom of the display.
In the event that the automatic selection does not match the host bus type of
your system hit reset and restart the software. If this fails you may set it
manually as follows:

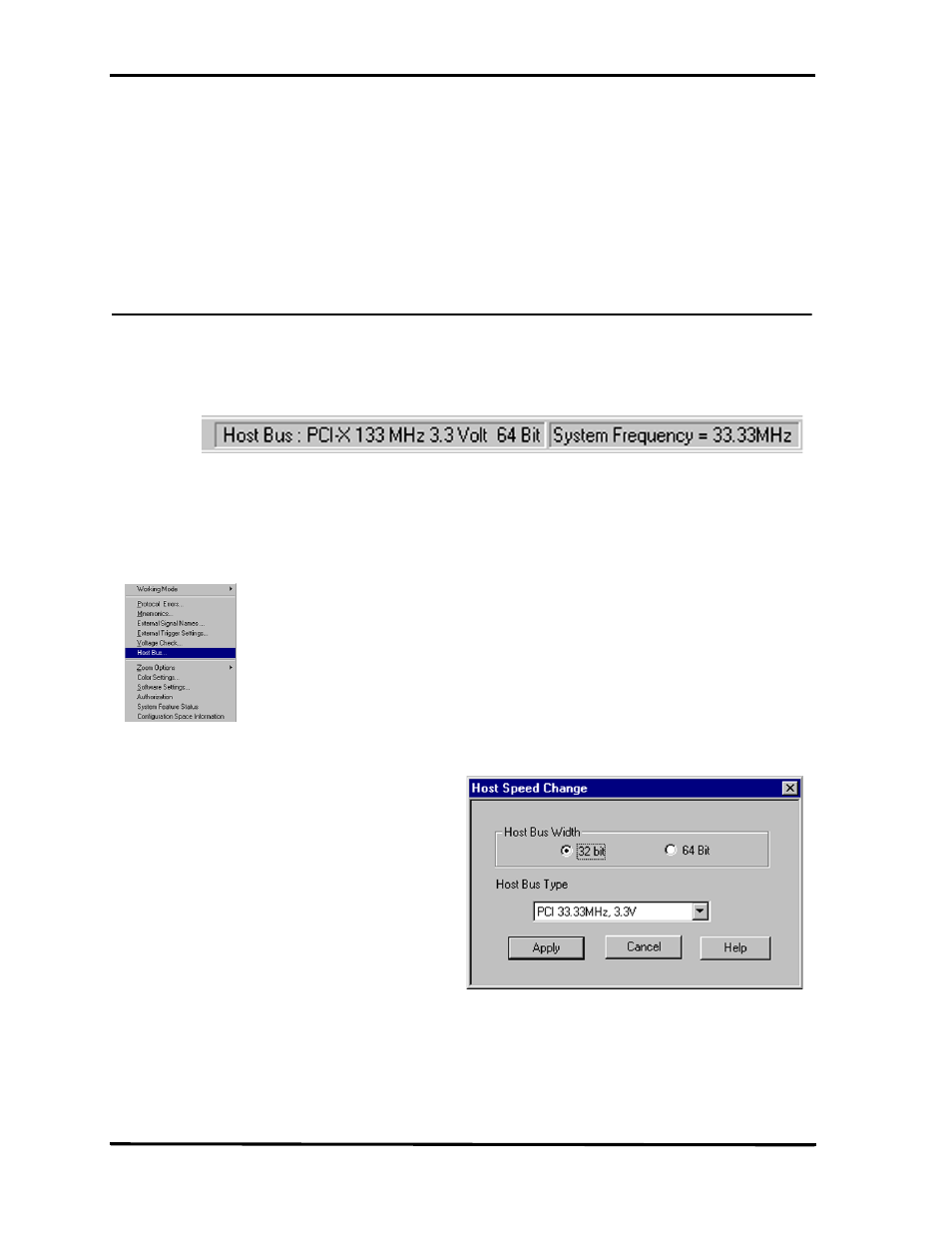

Figure 7 Host Bus Type Selection Dialog Box
Click Configuration on the main menu bar and then select Host Bus to open the
Host bus type selection dialog box.
