Selective Data Capture (Current Slot Only)
Choosing this option allows you to further refine your capture by limiting it to the bus
traffic originated at this slot only.

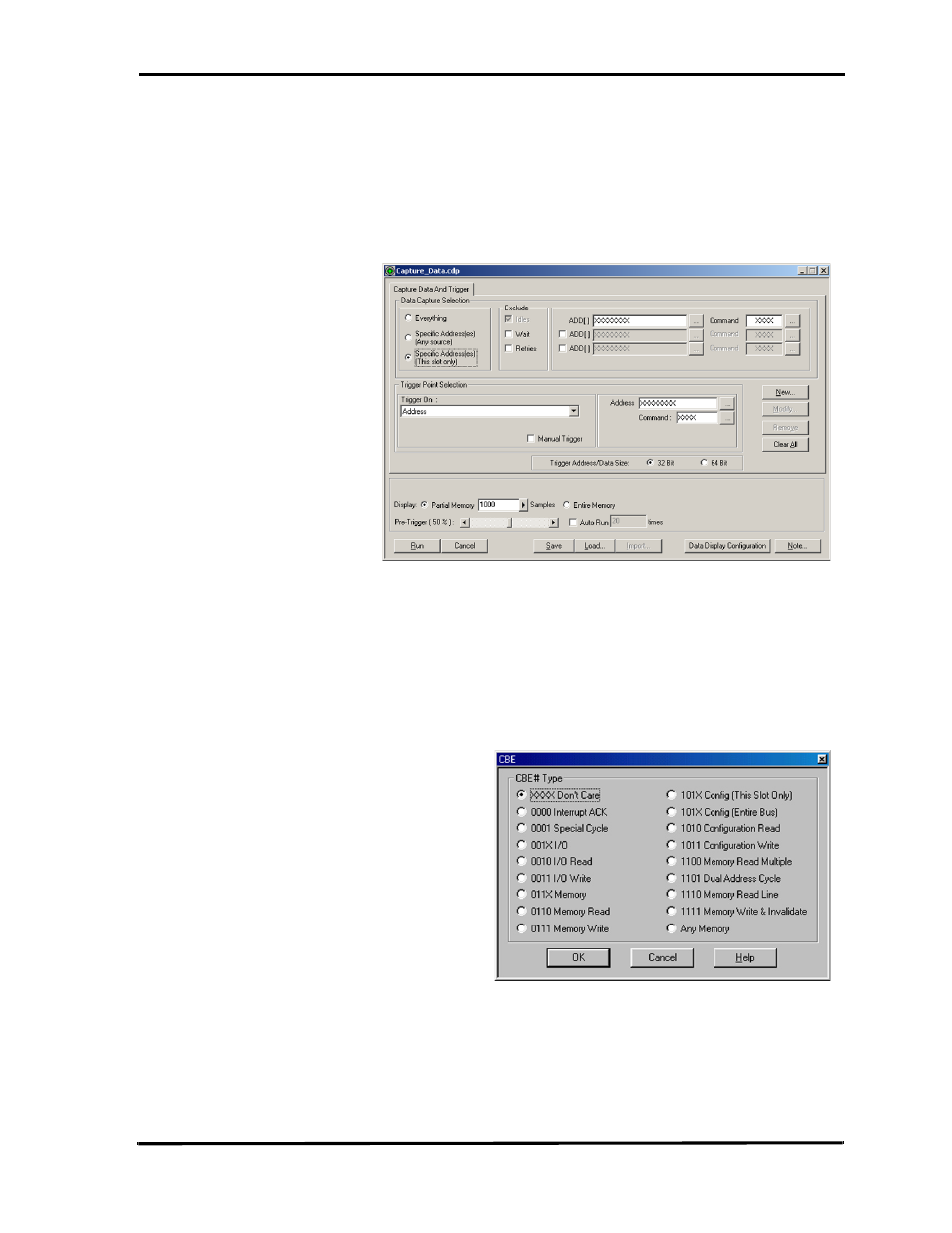

Figure 18 Capture Data for Current Slot Only.
Setup for this option is identical to the Selective Data Capture for the complete bus.
You may specify data capture at up to 3 address ranges with a specific associated
command that is selected from the CBE# dialog box. To open the CBE Type dialog
box click the ellipses button next to the Command edit box.
Figure 19 CBE Select Dialog Box
