Catalyst Enterprises, Inc. Easy Mode
60
Timing Violation Capture
1. Set the desired data capture options such as Pre-Trigger percent, Display
Memory etc. and click Run.
The occurrence of the first timing violation will cause a trigger and open the Timing
Violation Results display as shown in Figure 52. The red signals represent a timing
violation. Bus signals are shown in a code. As an example 00000080 indicates that the
timing problem is for AD7, and 1000000C indicates the problem is for AD28, AD3 &
AD2 signals.

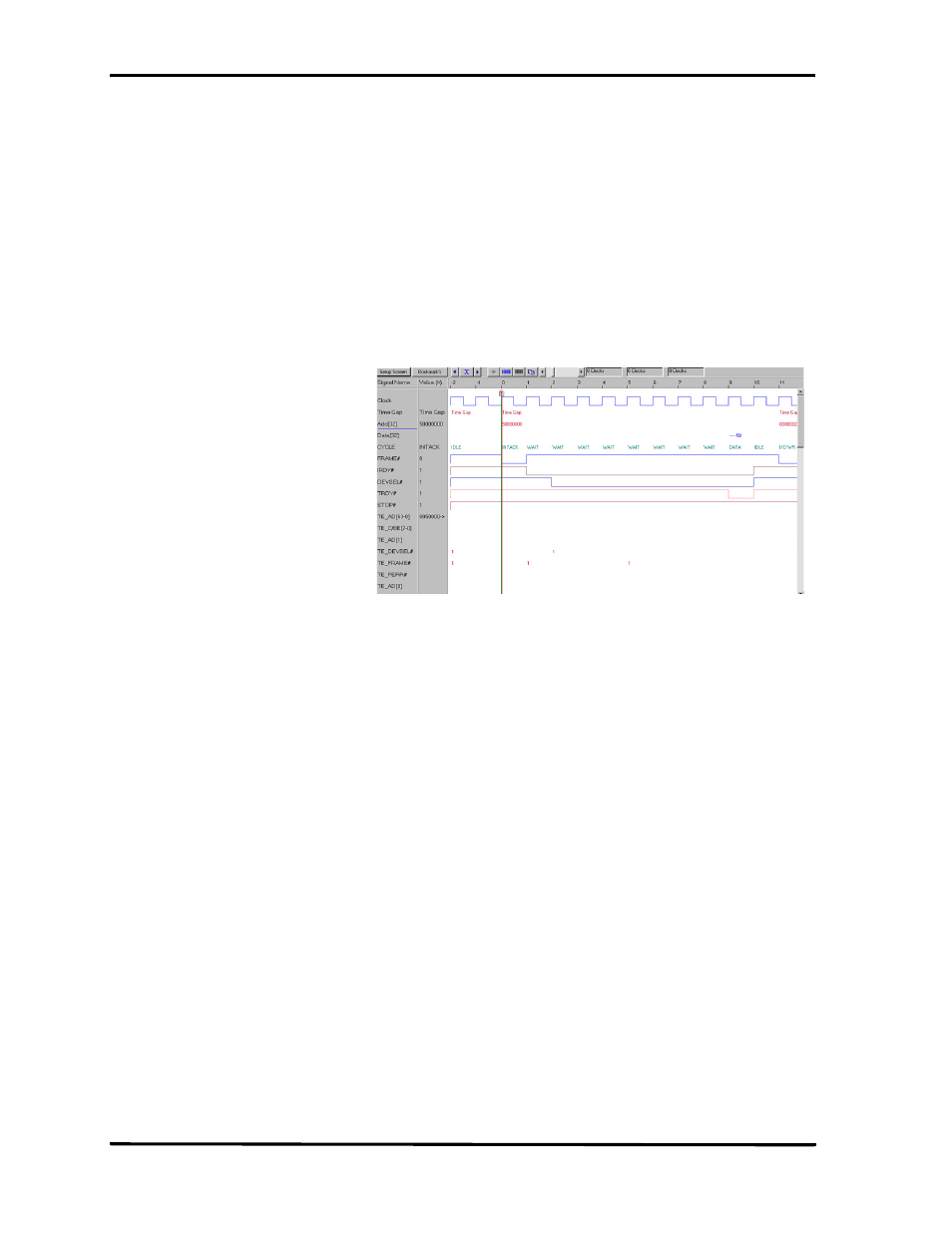

Figure 52 Timing Violation Results Display
