Catalyst Enterprises, Inc.

Custom Capture Data Project

Timing Analysis - Asynchronous

This mode of operation is not supported by the TA700PDC, TA800 or PCI-X

Caution: The TA700/800 may draw as much as 4.0 A during an asynchronous timing test, the

TA700/800 board must be configured to operate from the + 3.3V bus power. JP2
shunted between pins 2 - 3.

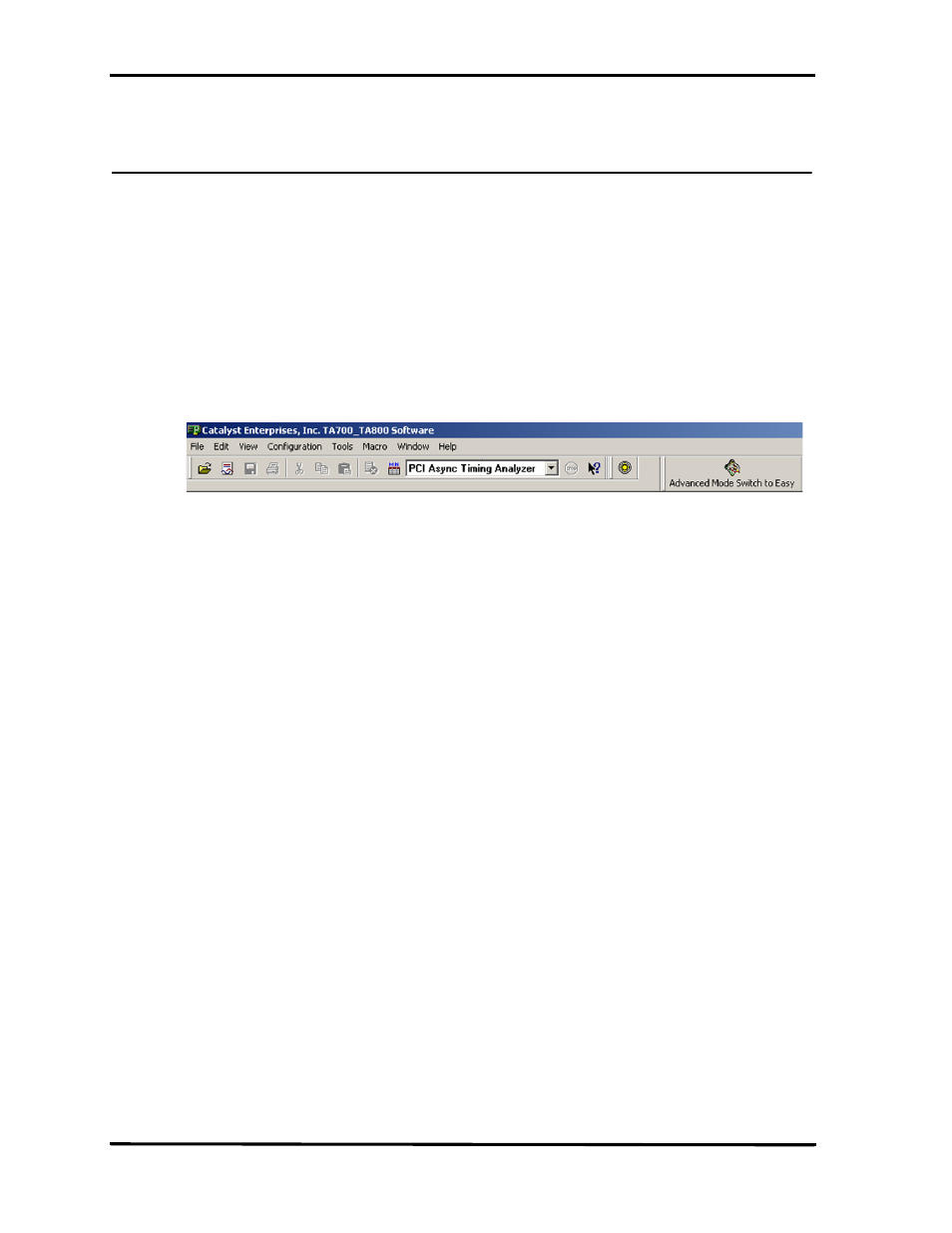

Make sure that the TA700/800 is in the Async Timing Analyzer working mode and is operating in the
Advanced Mode as shown on the Main Menu bar below.

Note:

The Async Timing Analyzer in the Advanced Mode operates identically to that in
the Easy Mode. See “Timing Analysis - Asynchronous” on page 62
