Tools to Analyze Captured Data Catalyst Enterprises, Inc.
153

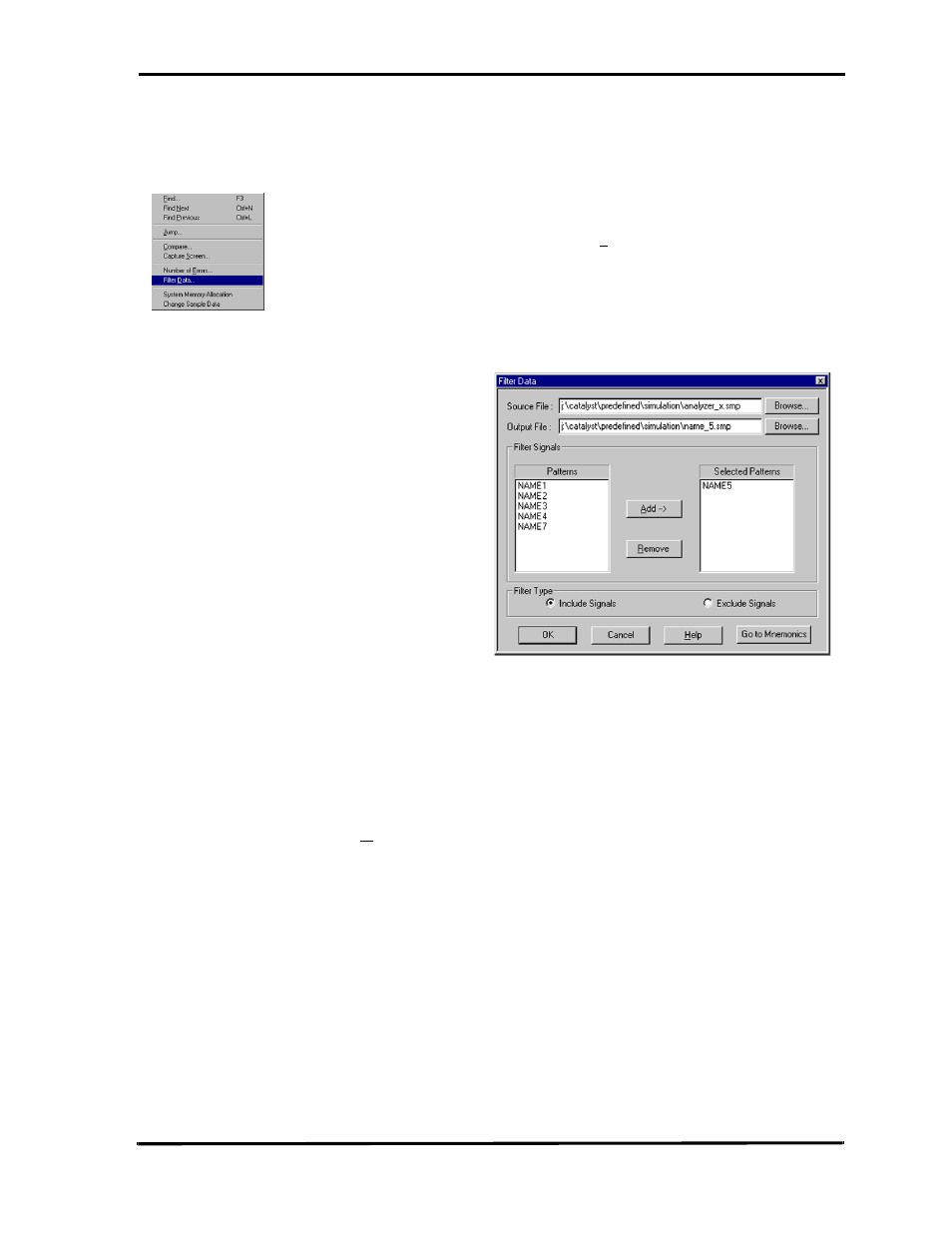

Figure 141 Filter Data Dialog Box
To configure the filter:
1. Select the Source file to be filtered and an Output File which is the destination
file for the filtered results.
2. Select the desired Filter signal mnemonics one at a time from the Patterns list
and click Add-> to include them in the Selected Patterns List.
3. Determine the filter type by checking the Include or Exclude Signals button to
define if the patterns are to be included or excluded from filtering.
4. Click Ok
To filter a previously sampled data file click Tools on the menu bar and then
select Filter Data . . . to open the Filter Data dialog box as shown in Figure 141.
