Catalyst Enterprises, Inc. Custom Capture Data Project
80
Defining a Boolean Expression
To define an expression, scroll down the list of options in the dropdown list where you
wish to use an expression and click on Expression to open the Expression Editor
window as shown in Figure 73.

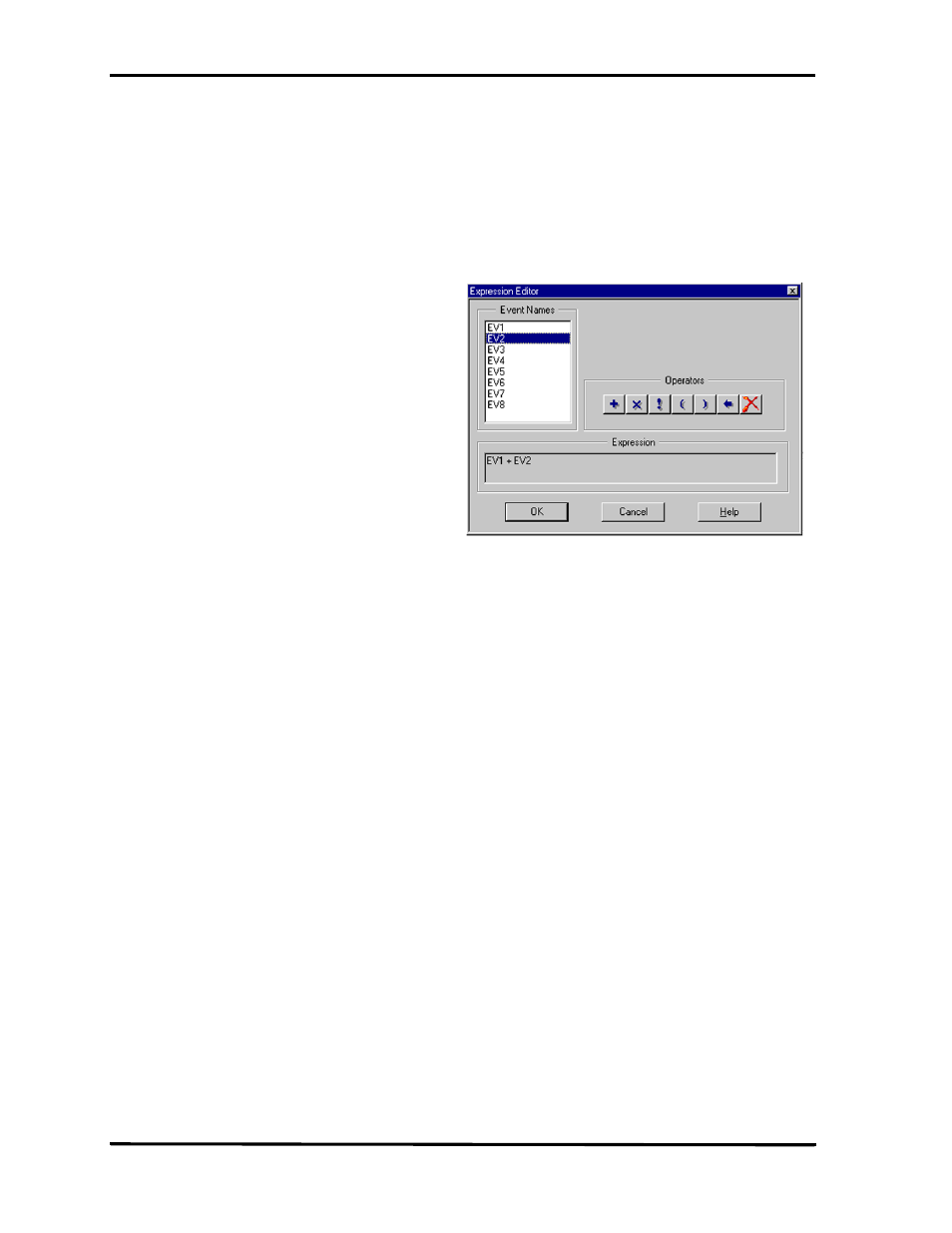

Figure 73 Expression Editor Window
Double click the Event Names and Operators as required to define the desired
Boolean expression and click OK.
The available Boolean operators available from left to right are: Logical Or, Logical
And, Negation, Parentheses, Backspace and Clear.
