Generate Traffic and Measure Statistics
Make sure that the TA700/800 is in the State Analyzer & Exerciser configuration and
is operating in the Easy Mode as shown on the Main Menu bar below.

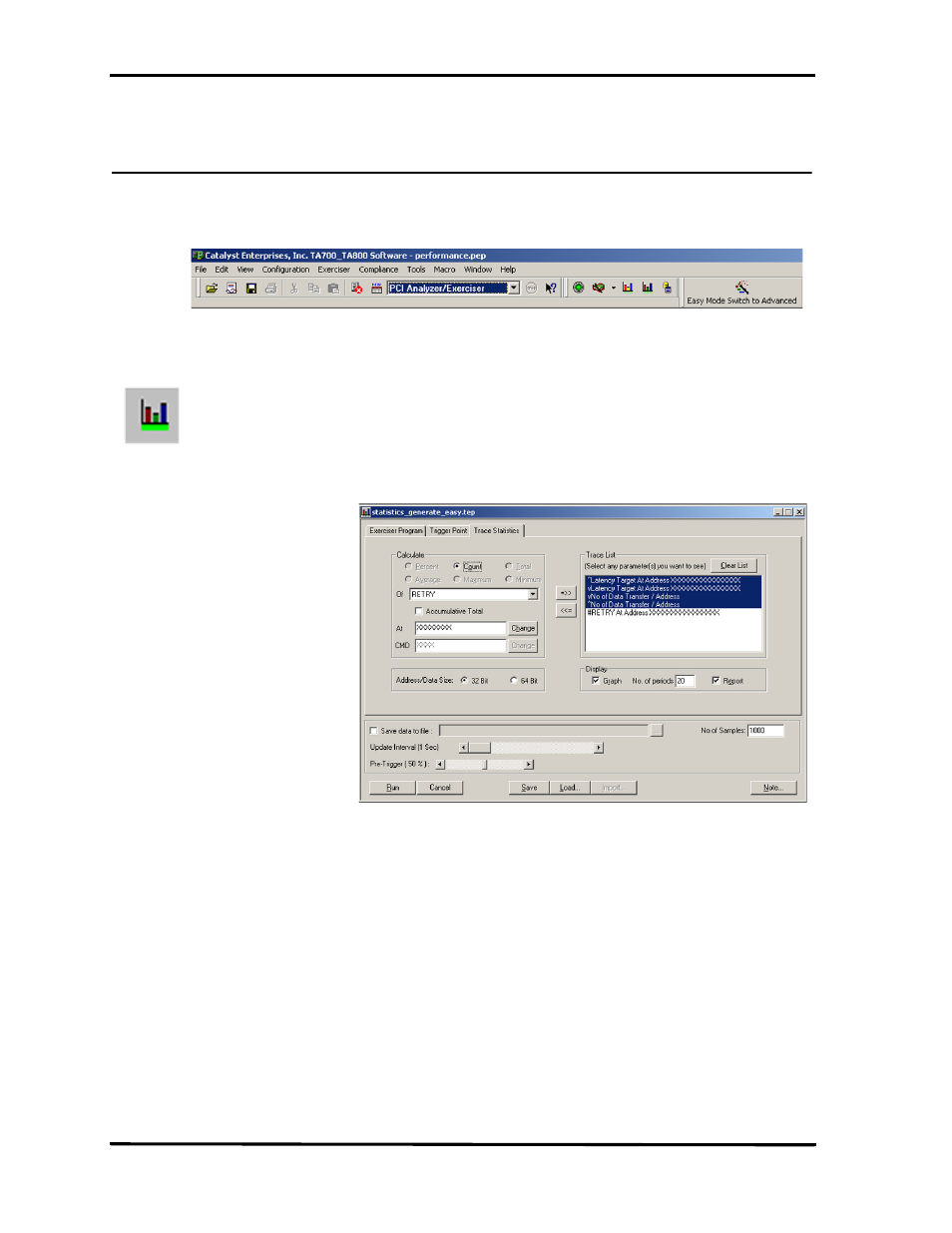

Figure 50 Trace Statistics With Exerciser
To obtain Trace Statistics with the exerciser:
1. Set the trace statistics options and the Trigger Point as described in Obtaining
Trace Statistics on page 36.
2. Click the Exerciser Tab and define the Exerciser Program as described in
Defining an Exerciser Program on page 41.
3. When all the parameters have been specified, click Run to capture the specified
data and perform the statistics reporting.
Click the Trace Statistics Icon on the menu bar to open the Trace Statistics dialog
box as shown in Figure 50.
