Easy Mode Catalyst Enterprises, Inc.
37

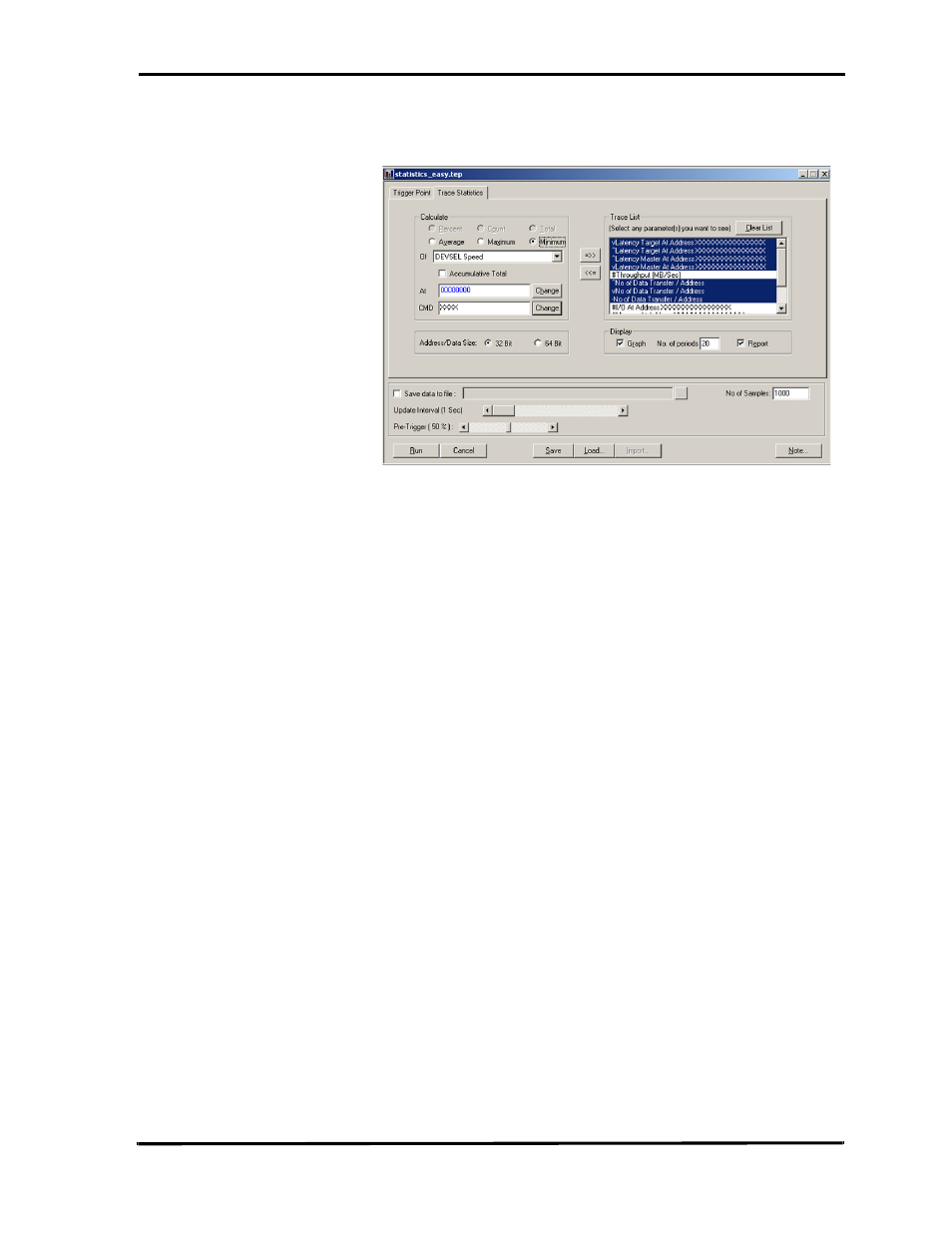

Figure 25 Easy Mode Trace Statistics Dialog Box
Selecting Parameters Select the parameters to be measured from the Analyze List Of shown in
Figure 25. Move the selected parameter to Trace List window for
software to perform interrogation on that parameter during post
processing by clicking the =>> button next to the Of edit box. Parameters
may be defined as minimum, average, maximum or count and or
percent depending on which unit applies. Parameters may also be
defined, if applicable, by address type.
Choose for Processing Highlight the parameters in the Trace List that you wish to have
processed.
Number of Samples Set the amount of data to be captured in the memory for post processing
for each interval. The larger the number of samples the more time is
required for downloading and processing, Therefore you should select an
optimum number of samples to be captured to memory such as 1000. This
takes about one second to process. If your application requires more data
then a larger number should be entered.
Update Interval If a small number of data samples is expected to be captured, say 1000,
and the application does not require repeated measurement, you may want
to sample data once every 5 or 10 seconds by changing the Update
Interval to 5 or 10 seconds as required. The larger of the two number of
data samples or faster update rate will be the dominating setup for data
capture time.
Address/Data Size Choose 32 bit or 64 bit addressing and data size.
Graph, Report Checking either or both the Graph or Report check boxes will produce a
corresponding graphical and or statistical report.
Pre-Trigger Pre-Trigger is set by default at 50% which defines the percentage of data
to be captured before and after the triggering event. You may change this
percentage by dragging the slider to the desired value.
