TA700C Extended Memory
The 4 MS extended memory card plugs into the 4 Memory Expansion connectors on
the TA700C CompactPCI Analyzer card. See Figure 160

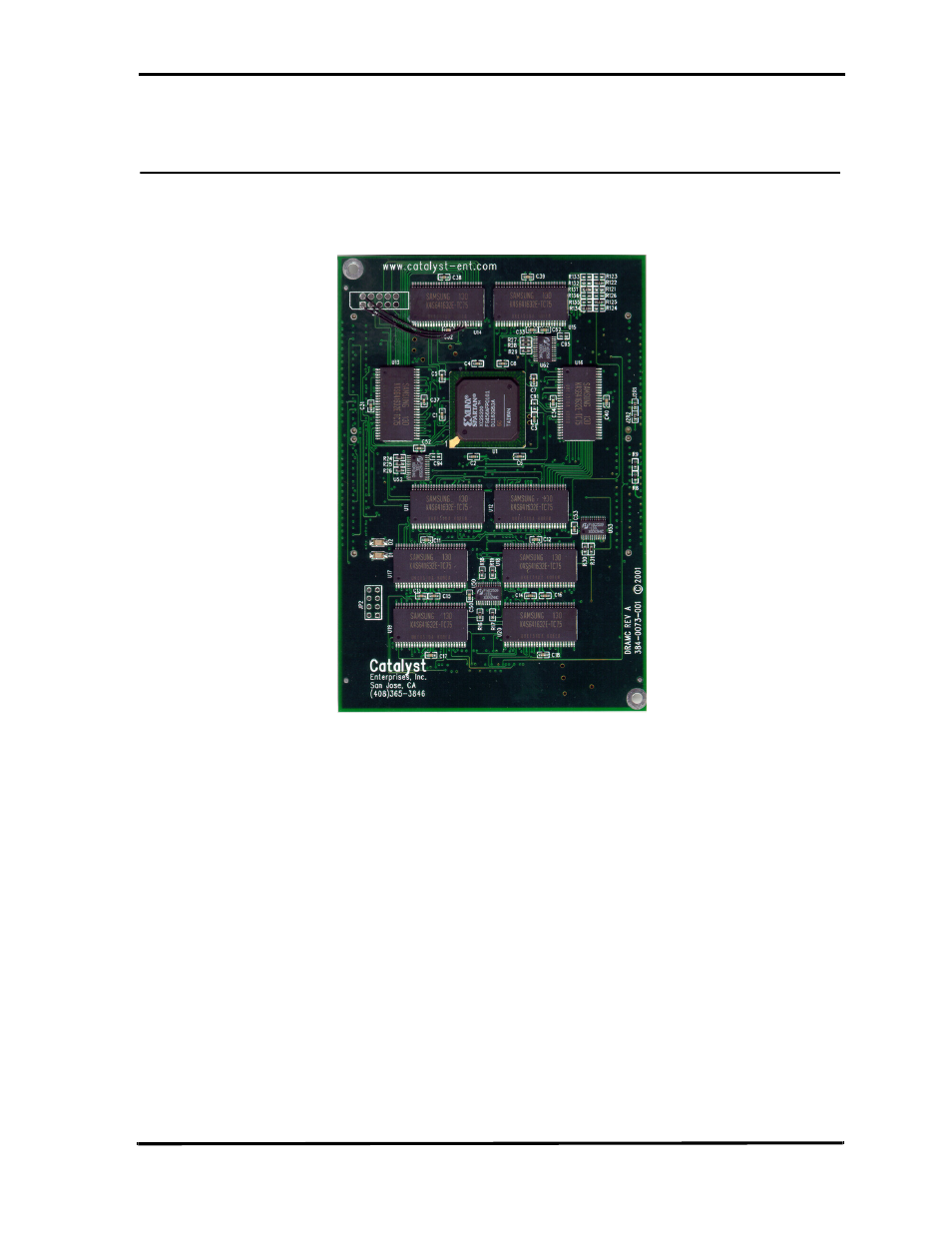

Figure 161 TA700C Extended Memory Card
Specifications:
Maximum operating speed 100 MHz
Sampling 4 Mega samples of all PCI signals + time tag.
Note: There must be a stable clock on the bus prior to capturing data to the extended mem-
ory.
