Configuration Menu Catalyst Enterprises, Inc.
17
Enabling Voltage Check
The TA700/800 is capable of monitoring the critical voltages on your PCI bus. TA700/
800 monitors a 5% drop in voltage for selected voltages and turns the SYS status LED
from green to red if any of the voltages drop by 5%.
Not available for TA700P (PMC).
To select voltages for monitoring:

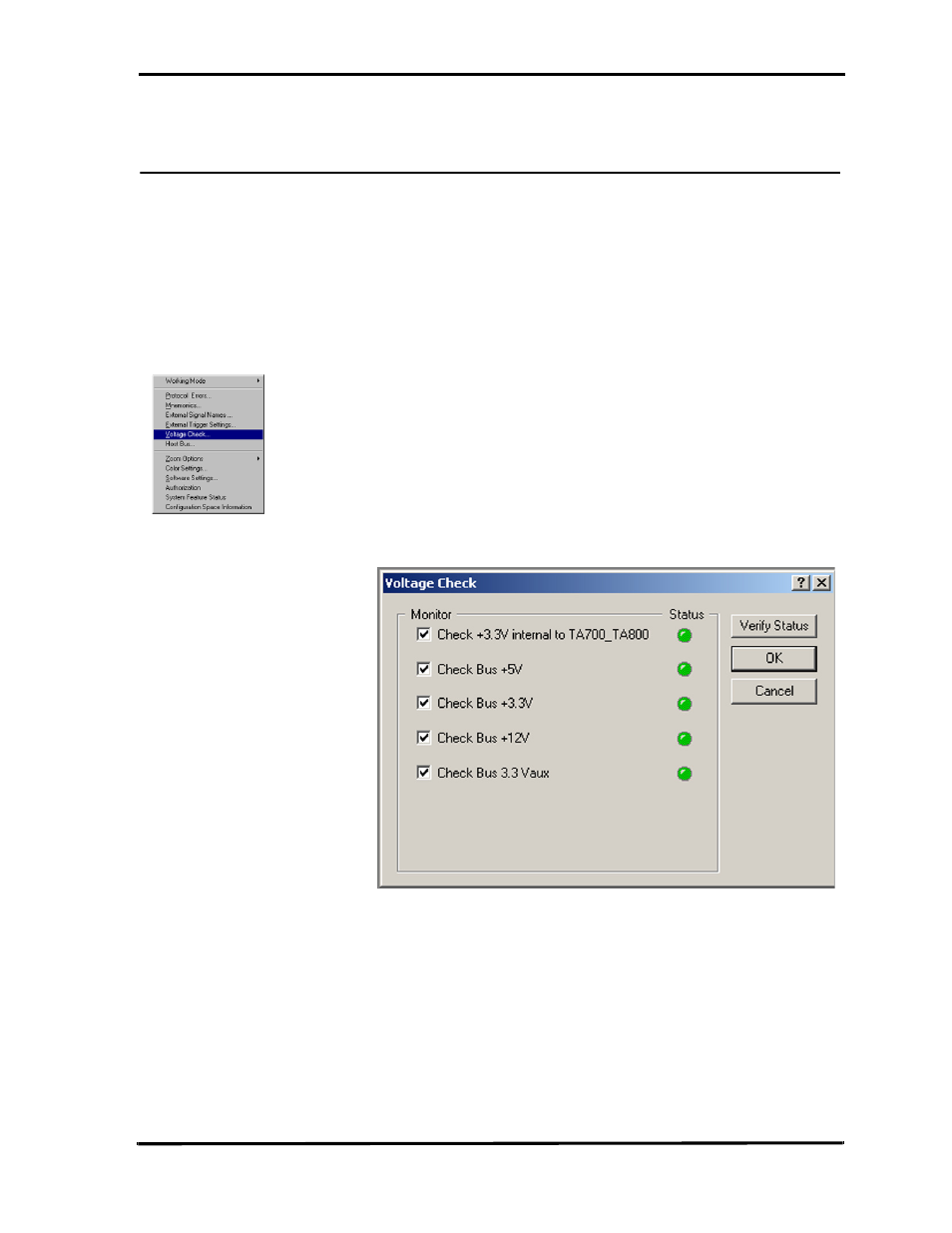

Figure 6 Voltage Check Dialog Box
Check the boxes in the Monitor column for voltages that you wish to be monitored
and click OK.
Note: Top connector voltages not available for CPCI or TA800.
When the TA700/800 is powered from the bus, the Check +3.3V supply to TA700/800
and Check Bus +3.3V both display the Bus status, however when an external power
supply is used the Check +3.3V supply to TA700/800 will display the external power
supply status.
Click Configuration on the main menu bar and then select Voltage Check. . . to
open the Voltage Check dialog box.
