Special Setups Catalyst Enterprises, Inc.
165
Displaying Patterns Matching Mnemonics
Figure 148 illustrates a simple mnemonic file named YOUR_NM that is to be used to
highlight a matching pattern in collected data.
To view a pattern with this mnemonic you must add it to the displayed signals list. To
add the mnemonic:
Click the Setup Screen on either the wave or list data display to open the Active
Signals Dialog Box.

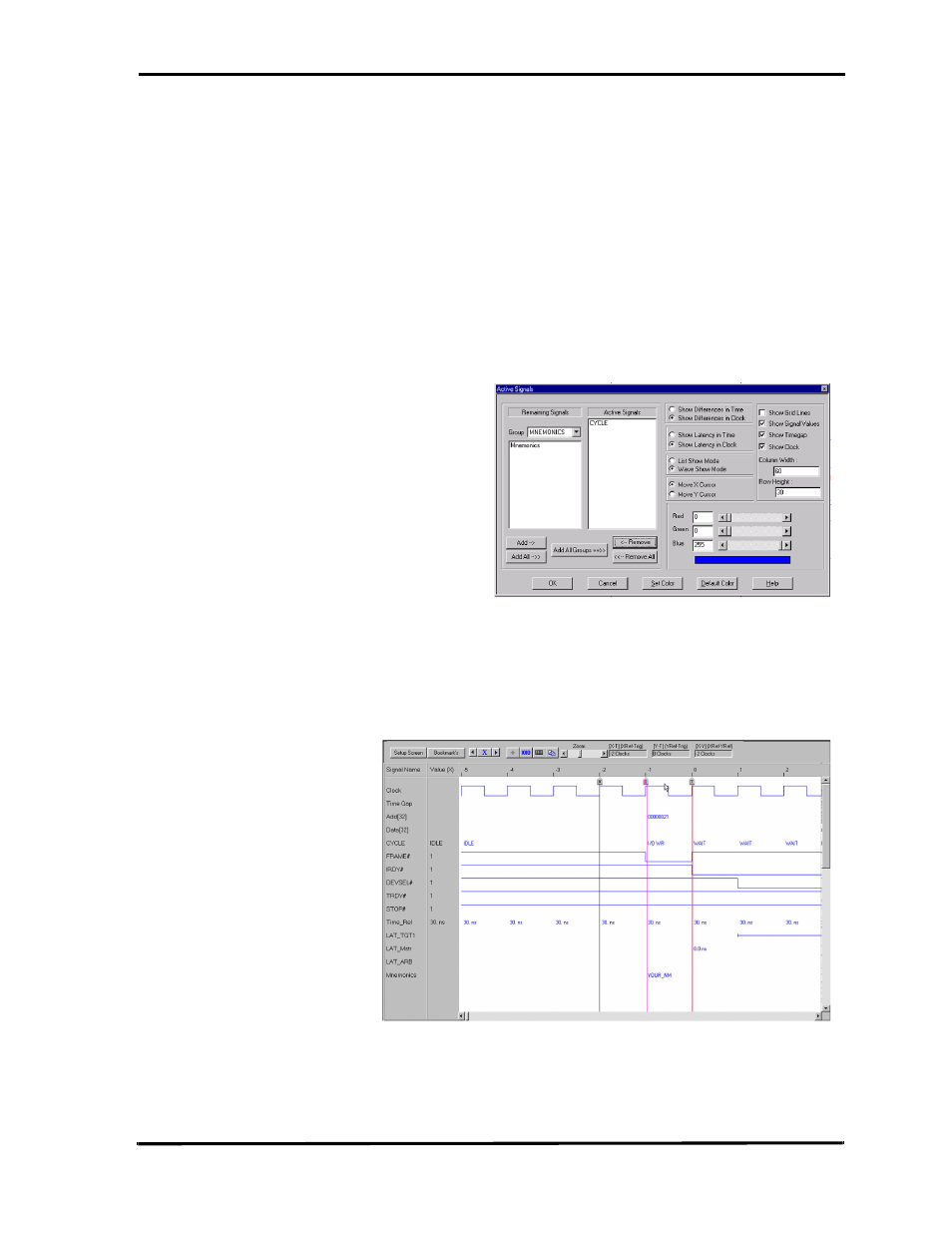

Figure 149 Add Mnemonic to Display
Select MNEMONICS from the Group drop down list, select the mnemonic to be
added and click Add-> and then OK to complete the operation.
Figure 150 illustrates the search result with a mnemonic.
Figure 150 Searching a Display With a Mnemonic
