Generate Traffic and Measure Performance
Make sure that the TA700/800 is in the State Analyzer & Exerciser configuration and
is operating in the Easy Mode as shown on the Main Menu bar below.
Performance Analysis with exerciser requires you to define an exerciser program as
described in Defining an Exerciser Program on page 41.

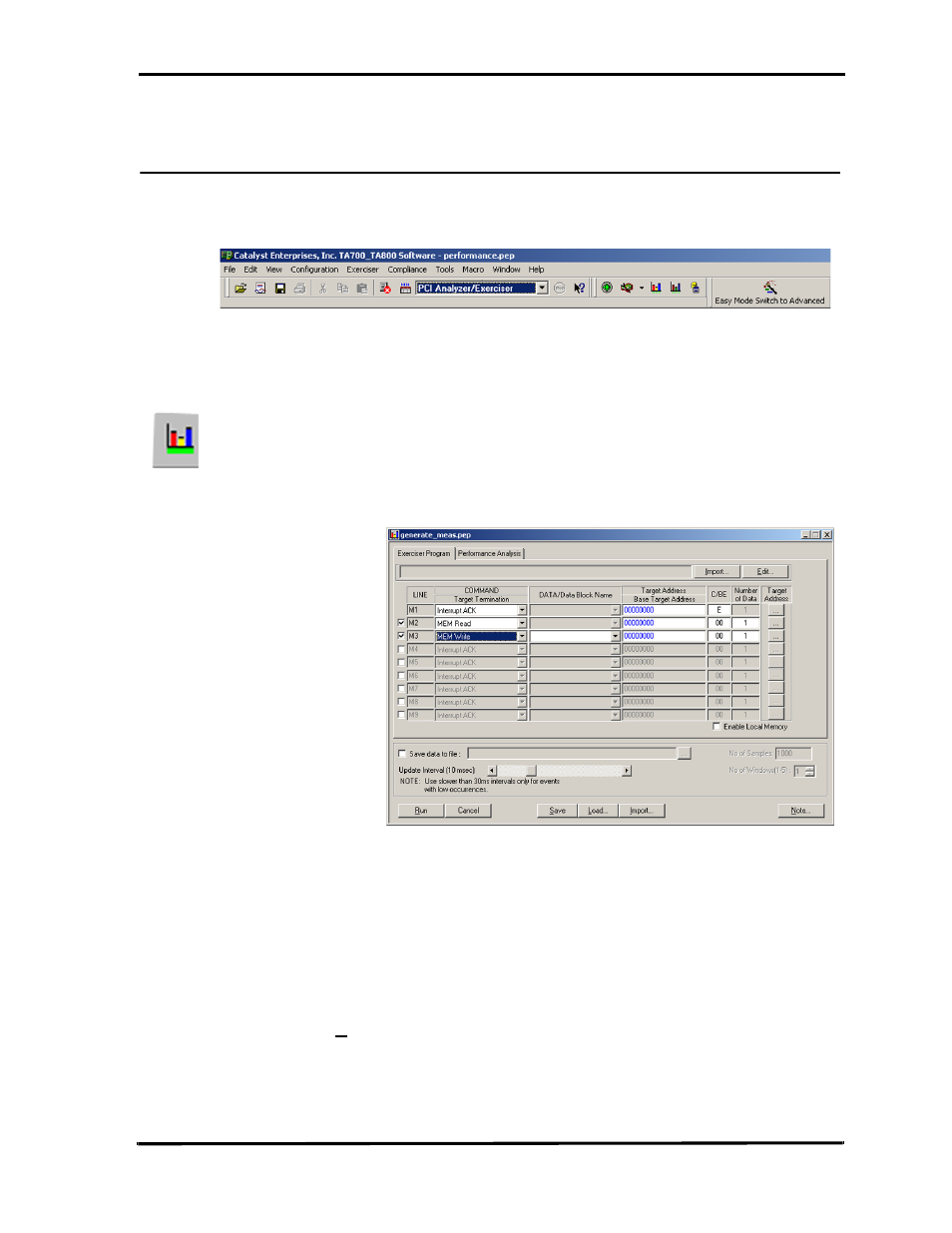

Figure 49 Performance Analysis with Exerciser
To perform Performance Analysis with the exerciser:
1. Define the exerciser program, such as reading or writing to a known memory
location.
2. Click the Performance Analysis Tab and set up the Performance Analysis as
described in Performance Analysis on page 34.
3. Click Run.
Click the Performance Analysis Icon on the menu bar to open the Performance
Analysis dialog box as shown in Figure 49.
