Catalyst Enterprises Inc. APPENDIX B
232
TA700 Extended Memory Card
The 4 Mega sample extended memory card plugs into the 4 Memory Expansion
connectors on the TA700 PCI Analyzer card. See Figure 158.

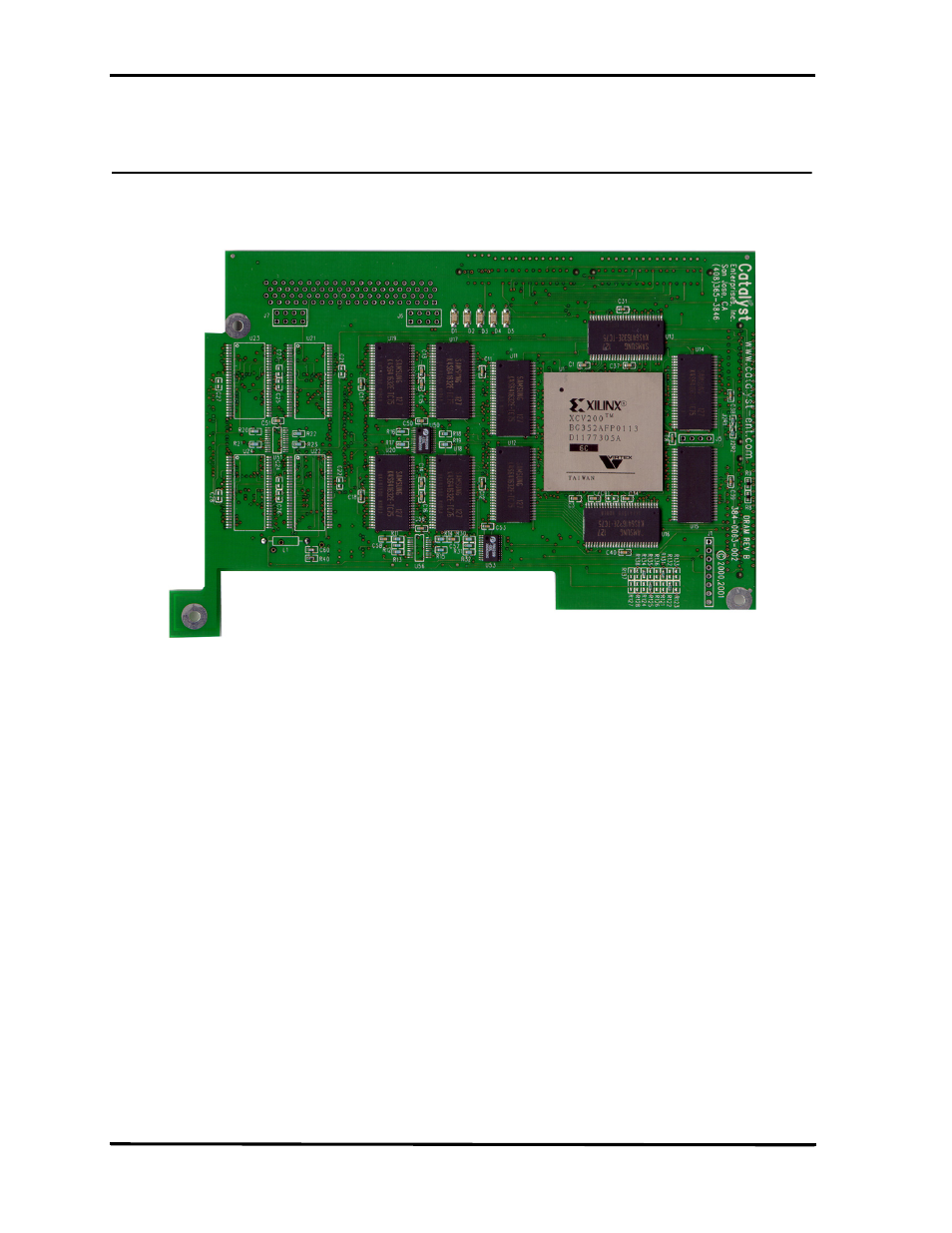

Figure 159 TA700 Extended Memory Card
Specifications:
Maximum operating speed 100 MHz
Sampling 4 Mega samples of all PCI signals + time tag.
Note 1: There must be a stable clock on the bus prior to capturing data to the extended
memory.
Note 2: Extended Memory does not capture External Signals and Protocol Errors.
