Catalyst Enterprises, Inc. Custom Capture Data Project
78

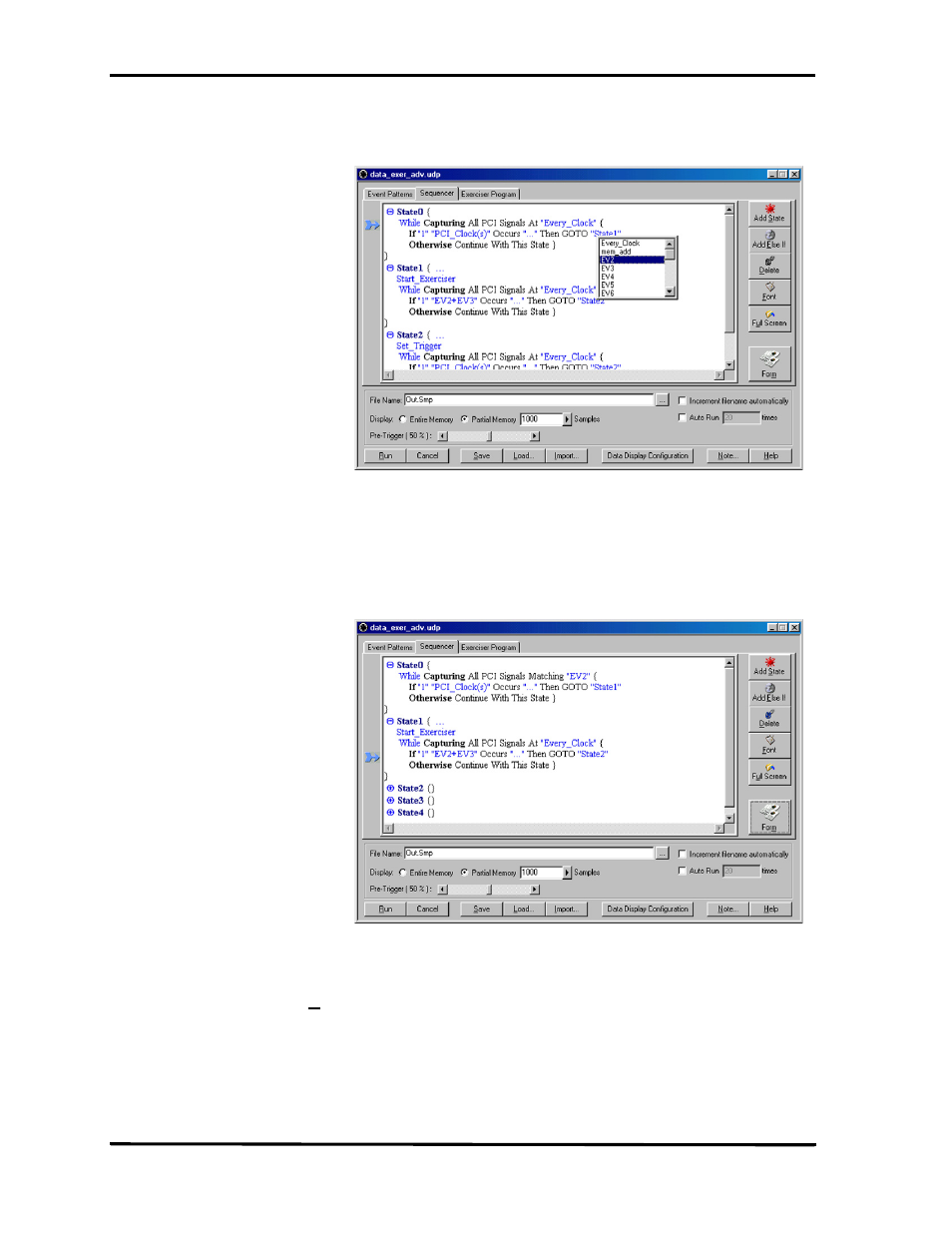

Figure 70 Changing the Programmable Parameters
Optimum Workspace To avoid scrolling the display in long sequencer programs you may
minimize completed states by double clicking the symbol next to the state
to be minimized. To expand the minimized state, double click the state
name.
Figure 71 Minimized State Display
Deleting a State To delete a state, place the cursor in the text for that state and click the
Delete button.
Pre-Trigger The Sequencer menu includes a Pre-trigger xx% function which lets you
set the percent of data to be captured before and after the triggering event.
This percentage is set by default to 50%. For more details see “Set
Trigger” on page 81
