Catalyst Enterprises, Inc. Special Setups
164
Mnemonics
Mnemonics is a convenient debugging tool that assigns pre-defined names to
matching patterns. The Pre-defined names may be:
1. Included in the captured data display screen next to the matching patterns for
quick identification.
2. Used in the search menu to specify and find a desired pattern.
3. Used in Filter Data menu to include or exclude data from a previously generated
data file.
4. Defined for complex patterns such as data that occurs only after a specific
address.
You may define up to 100 individual patterns to use in the data output display, search
menu and Filter Data menu.
You may create several files each intended for a specific application.

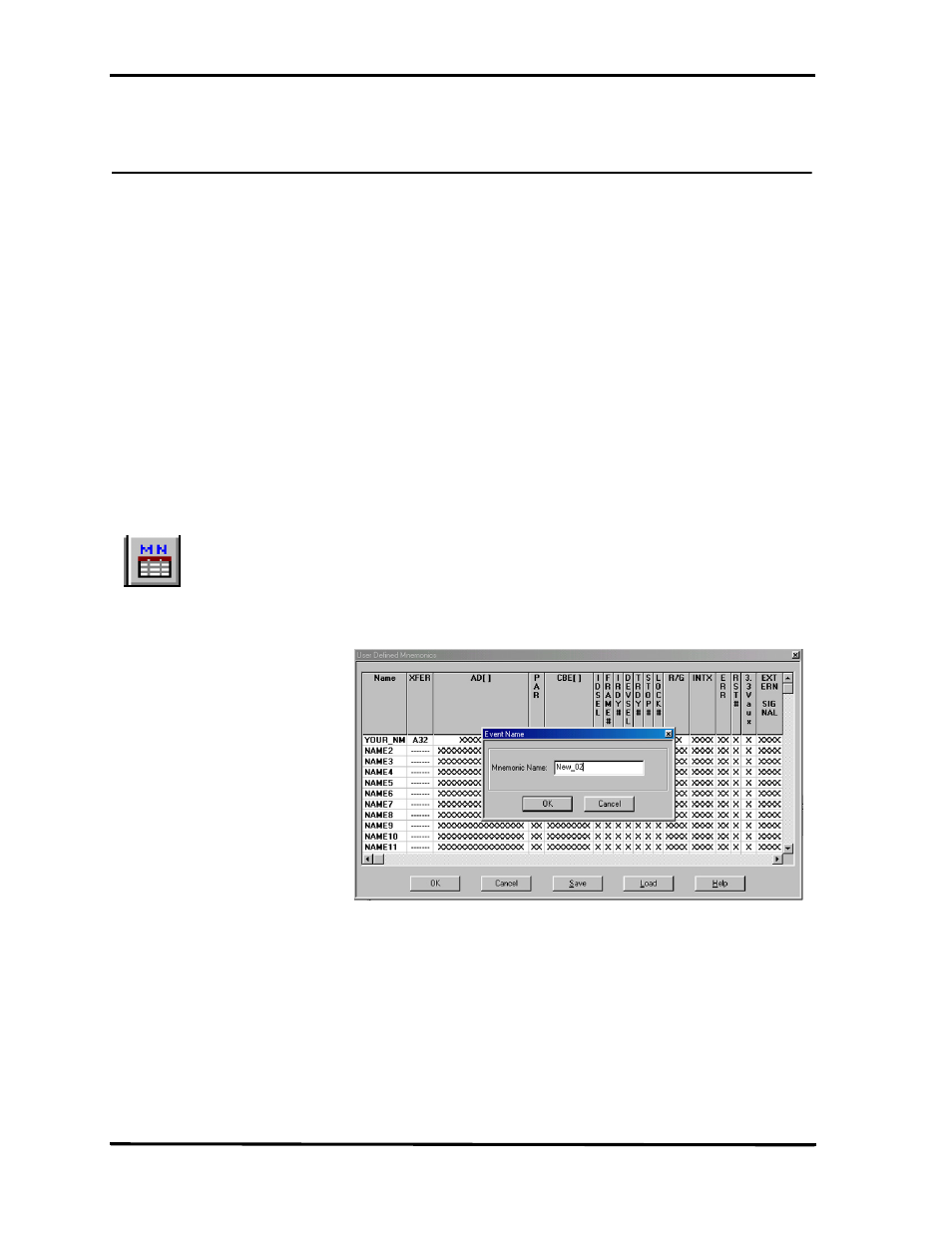

Figure 148 Mnemonics Definition Dialog Box
To define a mnemonic, double click a NAME# to open an Event name dialog box
select and enter a unique name for the pattern. To define a complex address/data
pattern click on the XFER field and select the MX32 or MX64 mode.
Not a Measurement While similar in appearance and action to the Event file, the mnemonics
definition is only an assignment of names to matching patterns used to
search and highlight an already collected data and is not used to perform
any measurements.
To define mnemonics, click on the Mnemonics icon on the menu bar.
