Catalyst Enterprises, Inc. Easy Mode
26
Easy Mode
The Easy Mode offers you the capability to perform 95% of your bus analysis tests
without the need for any programming. When operating in the Easy Mode your
analyzer can perform the following:
• Capture data and trigger on bus protocol immediately.
• Perform Timing Violation detection and a search for Setup/Hold
limits.
• Capture bus activity while exercising the bus.
• Do Performance analysis on PCI bus activity.
• Compute Statistics on selected parameters.
• Perform Compliance Device test. (In State Analyzer & Exerciser
only)
Instant Data Capture & Trigger

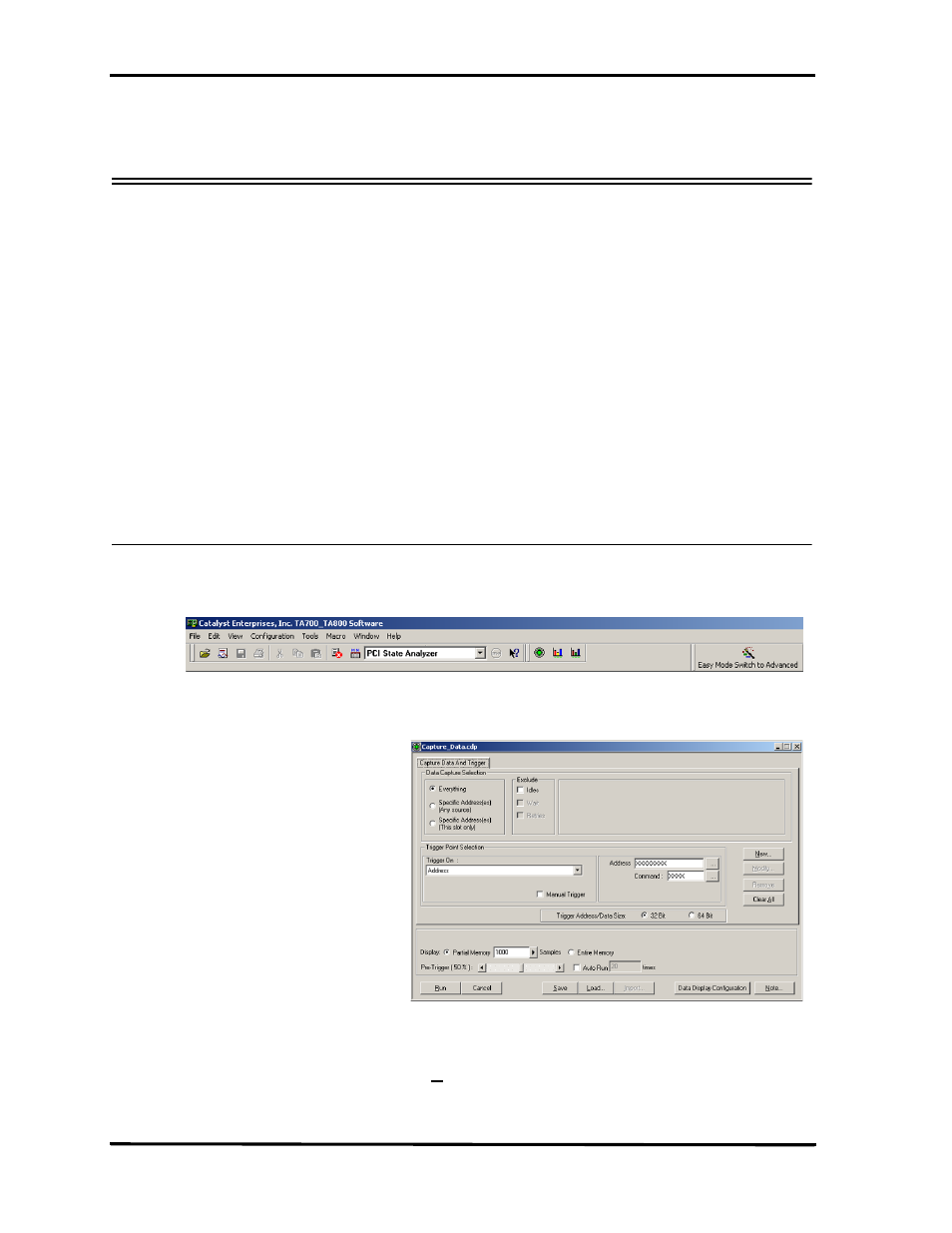

Make sure that the TA700/800 is in the State Analyzer Only configuration and is
operating in the Easy Mode as shown on the Main Menu bar below.
1. Click the Green button on the Main Menu bar to open the Capture Data and
Trigger dialog box shown in Figure 13.
Figure 13 Capture Data and Trigger Dialog Box
2. Select a Pre-Defined Trigger Point (See Table 1.) from the Trigger On
dropdown list and click Run. Wait to capture data and to view result. Figure 14
and Figure 15 show a typical Wave and List result display.
