Selective Data Capture (Complete Bus)
You may refine your data capture by checking the Data Capture Selection as Specific
Address(es).

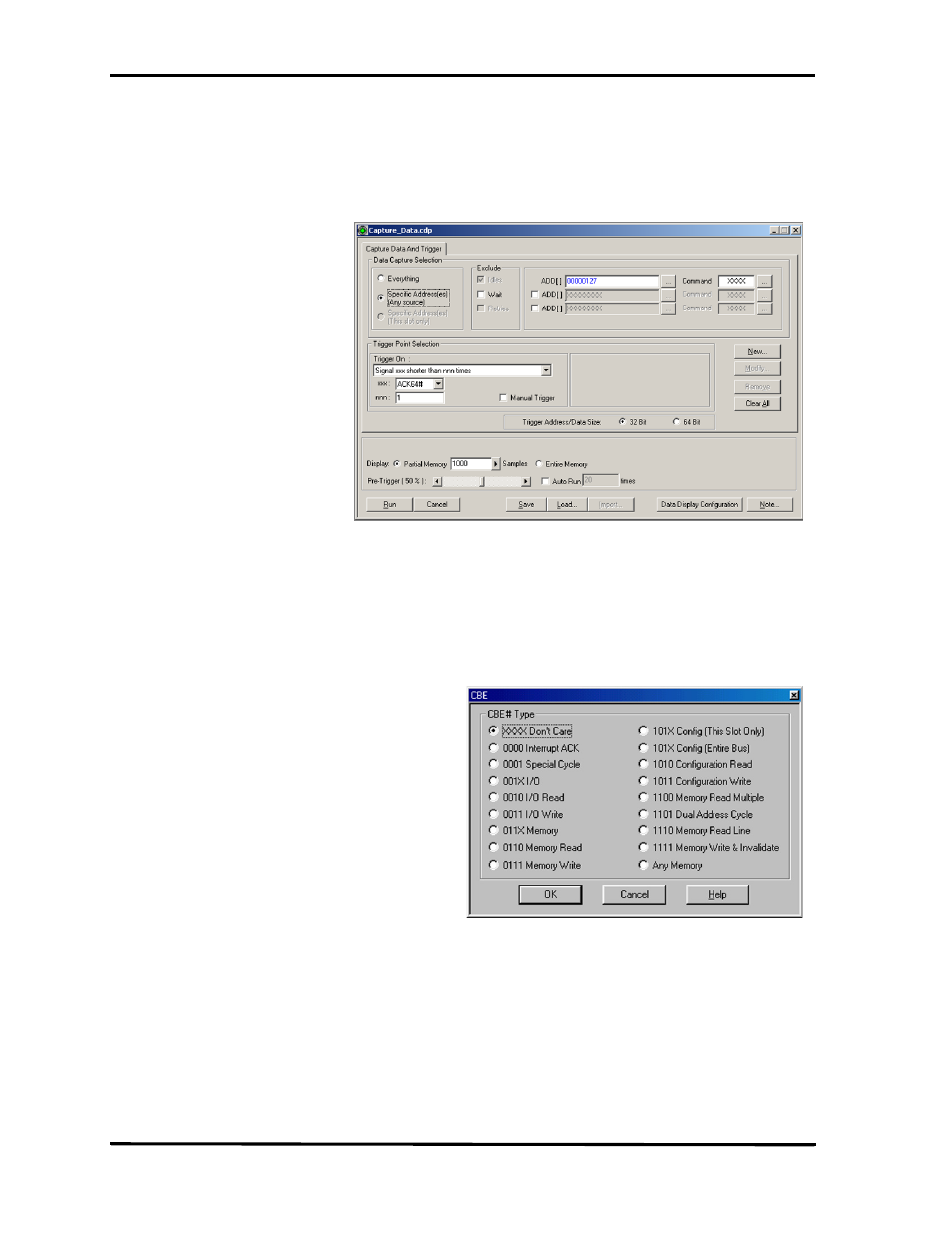

Figure 16 Capture Data At Specific Addresses Dialog Box
Selecting this option allows you to specify data capture at up to 3 address ranges with
a specific associated command that is selected from the CBE# dialog box. To open the
CBE Type dialog box click the ellipses button next to the Command edit box.
Figure 17 CBE Select Dialog Box
