Components
4-2

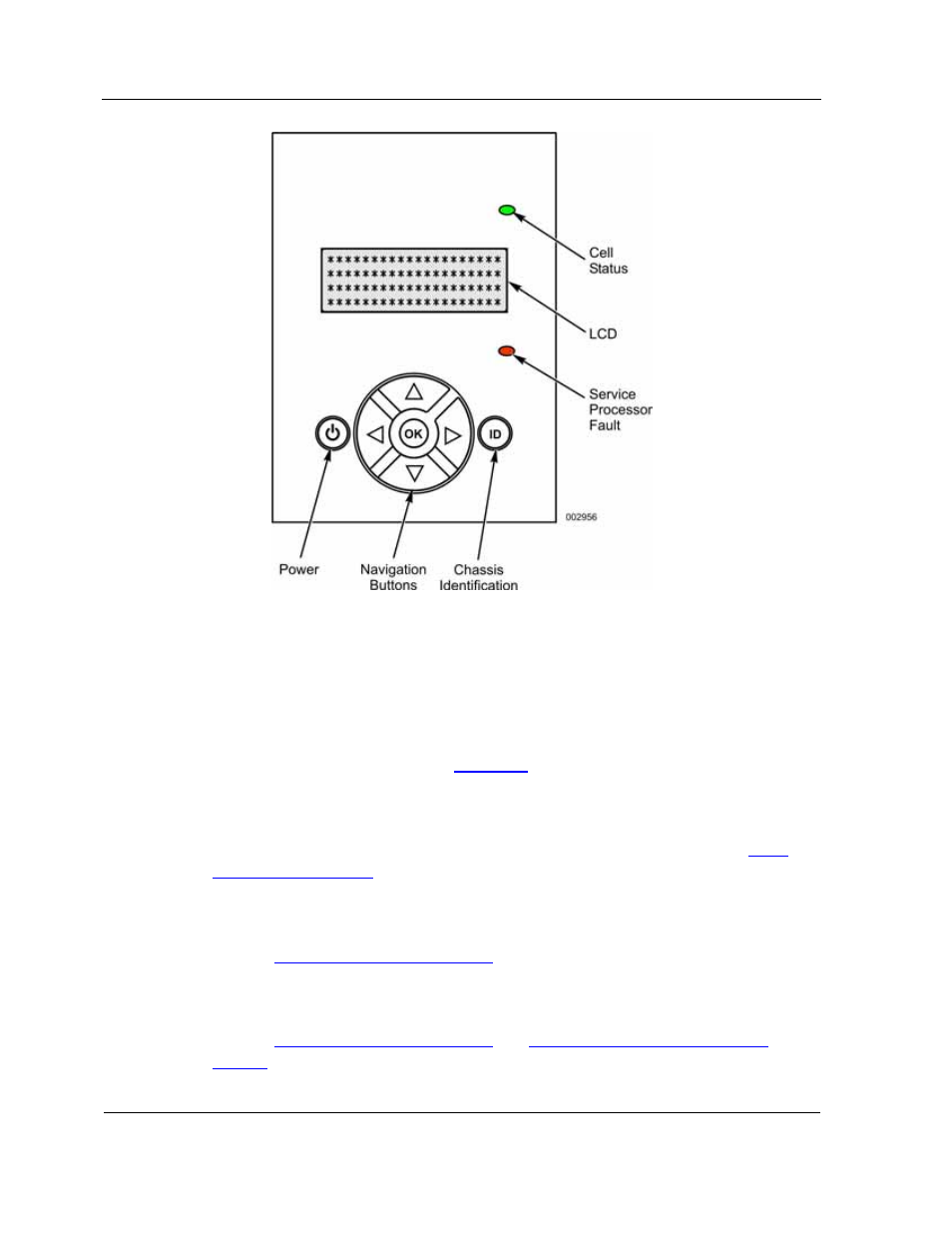

Figure 4-1 EXPRESSSCOPE® Monitor Interface
4.1.1. Main Screen Display
The EXPRESSSCOPE® Monitor LCD displays the main screen, which contains up to
four lines, each containing up to 20 ASCII characters. Each line in the main screen
displays specific content, as shown in
Figure 4-2
. From the top left to the bottom right,
the content is
•
Line 1: System name
The system name also appears in the remote console interfaces. Refer to
3.6.1
System Settings Page
.
•
Line 2: Partition name
The partition name also appears in the remote console interface for the partition.
Refer to
3.5.1 Partition Summary Page
.
•
Line 3: Cell operating state on the left; power-on self test (POST) code from BIOS (if
valid) on the right
Refer to
3.5.1 Partition Summary Page
and
6.5 System Power-On Self Tests
(POST)
for more information about cell states and POST codes.
•
Line 4, left side: Fault indicator; that is, whether any FRU faults exist. An example is
