NEC ExpressA1160 - Manual (Page 138)

Configuring Alerts and the SMTP Server using remote console interface
7-4

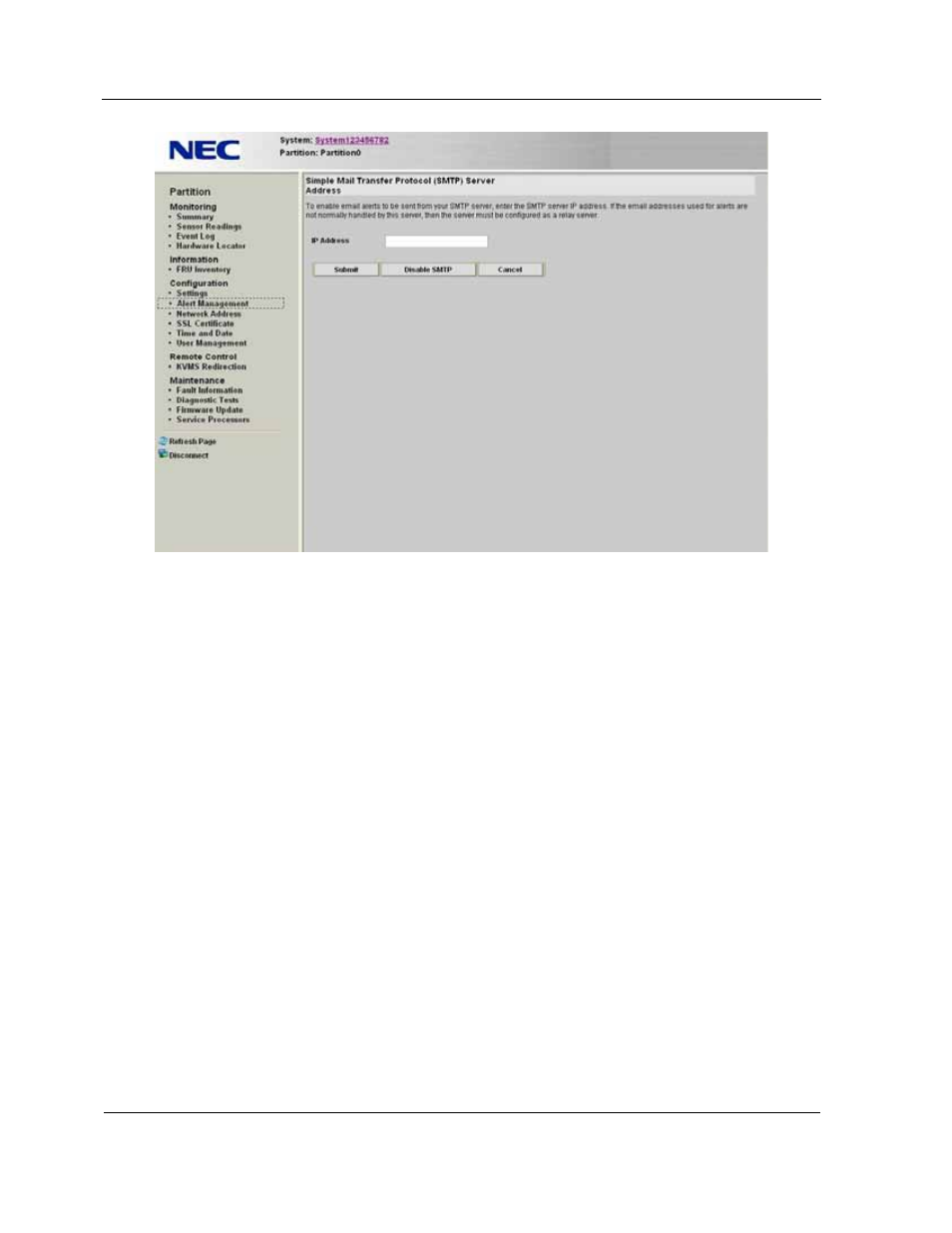

Figure 7-1 SMTP Page
1. Type the IP address of the SMTP server.
The IP address of the SMTP server must be accessible from the public MLAN to
enable management firmware to send e-mail alerts.
2. Click Submit .
A confirmation dialog box appears.
3. Click OK .
The Alert Management page appears.
If the SMTP server is configured but you need to disable it temporarily or for
maintenance purposes, perform the following steps:
1. Click SMTP Settings .
The SMTP server address page appears.
2. Enter the IP address of the SMTP server.
The IP address of the SMTP server must be accessible from the public MLAN to
enable management firmware to send e-mail alerts.
3. Click Disable SMTP .
A confirmation dialog box appears.
4. Click OK .
