Hard Drive (CRU)
11-17

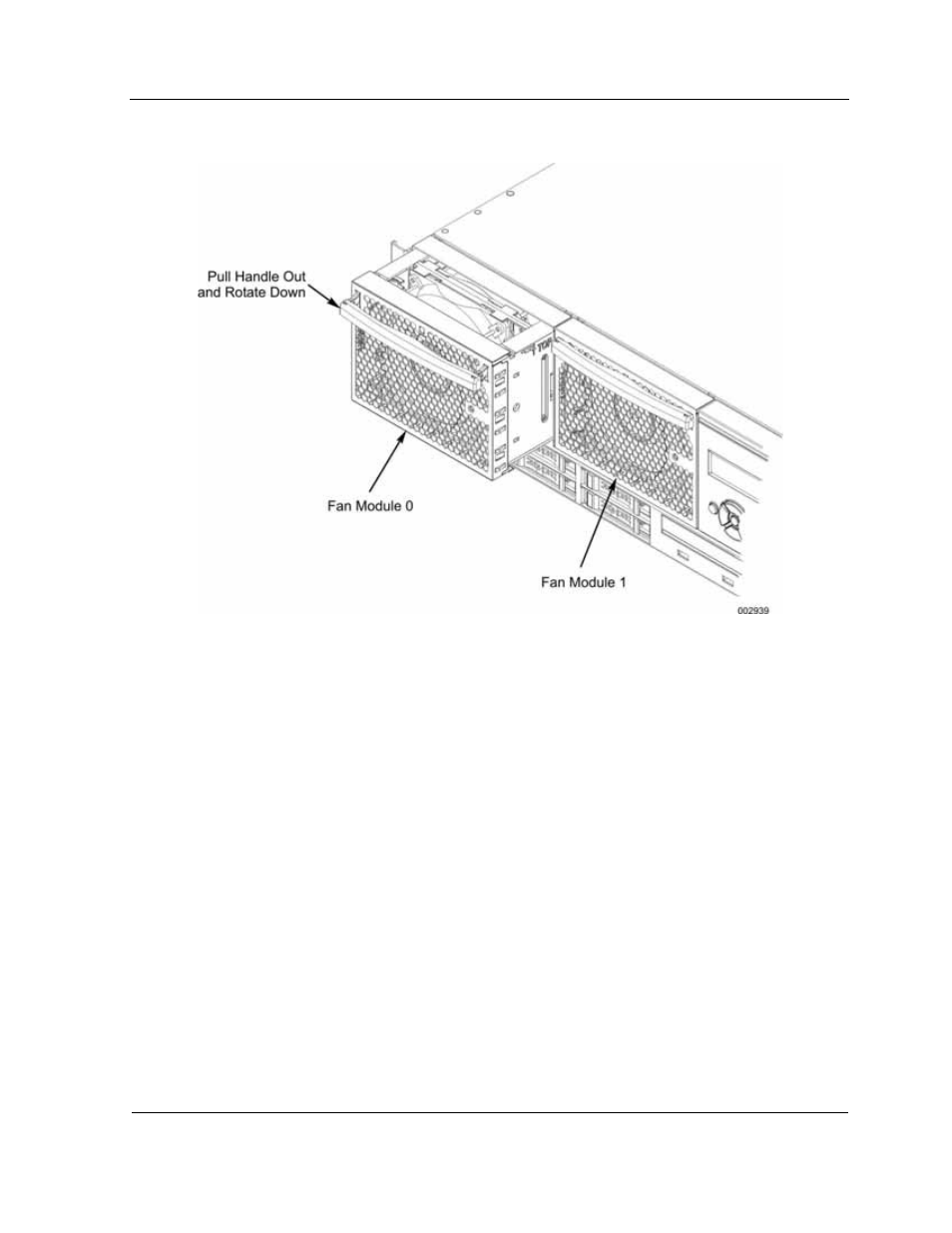

Figure 11-14 Fan Module
11.11.2. Replacing the Fan Module
1. Align the fan module in the cell, and push in the fan module until it is fully engaged.
2. Rotate the handle upward to lock the module in place.
The green status light illuminates to indicate that the fan module is running properly.
11.12. Hard Drive (CRU)
Use the following procedures to remove and replace a hard drive.
11.12.1. Locating a Failed Hard Drive
It is recommended that you install Universal RAID Utility to monitor the RAID array
status of the SAS disk drives. The Universal RAID Utility enables you to easily identify
when a failed hard drive needs to be replaced.
The Universal RAID Utility is included on the Express5800/A1160 Utility Disk Media.
The Universal RAID Utility is also available from the Product Support Web Site:
