NEC ExpressA1160 - Manual (Page 84)

Cell remote console interface
3-42

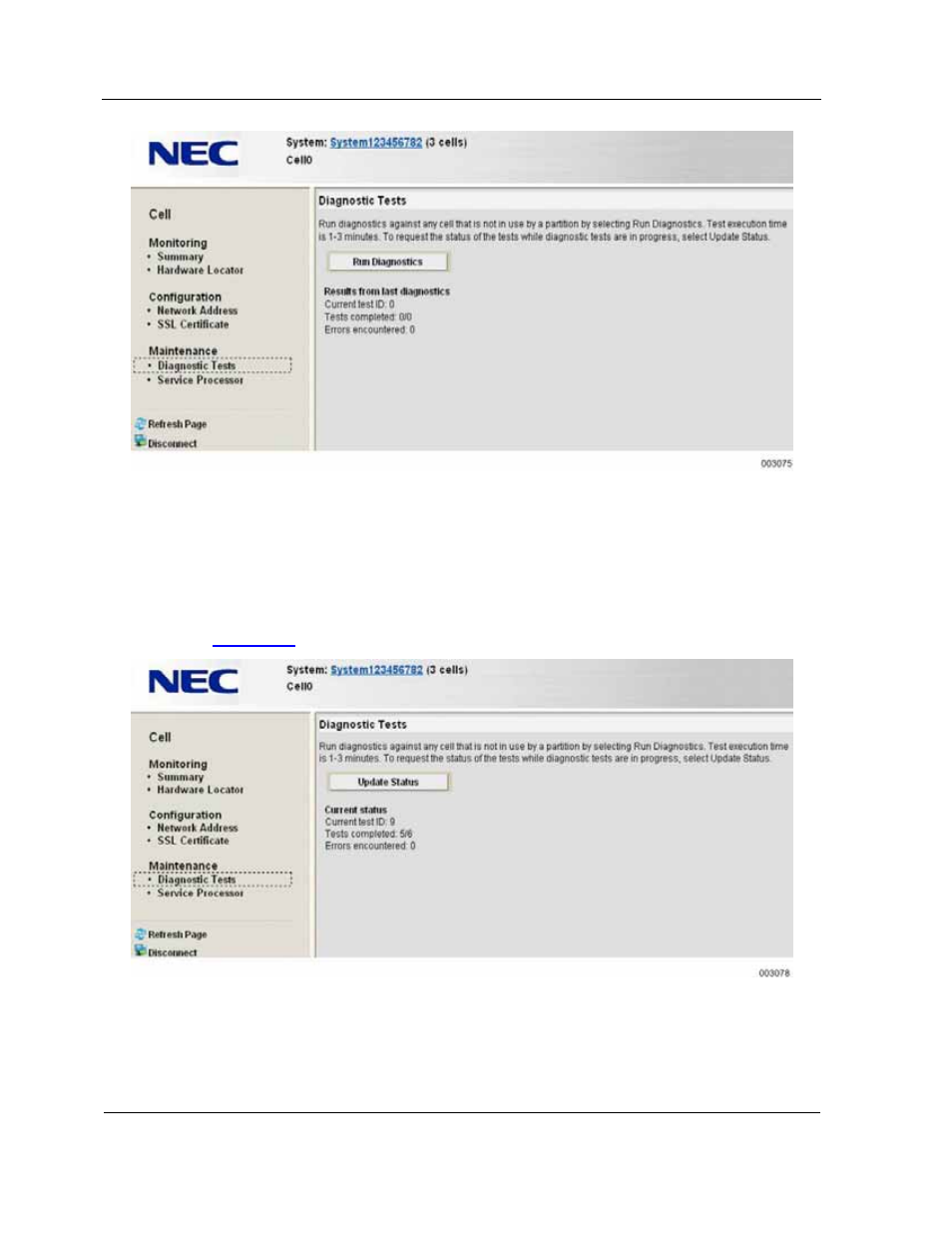

Figure 3-31 Cell Diagnostic Tests Page
If you have an indication that some component is failing, you can run diagnostic tests for
a cell, as follows:
1. Click Run Diagnostics to start the tests.
The tests begin and the label on the button changes to Update Status, as shown in
Figure 3-32 .
Figure 3-32 Cell Diagnostic Tests Status Page
2. Click Update Status to check progress while tests are executing. The current
status is updated with the current test ID, the number of tests completed of the total
to run, and the number of errors encountered. When tests complete, the label on
