Cell remote console interface
3-38
• Cell name
The left side of each cell page provides navigation to other pages. The name of the
displayed page is highlighted in the hierarchy. The following paragraphs describe each
cell page.
3.7.1. Cell Summary Page
You can access a cell remote console interface from the system remote console
interface or by entering the cell MLAN address in the browser.
Figure 3-27 shows the
cell summary page, which opens when you log on. None of the pages in a cell remote
console interface are refreshed automatically.

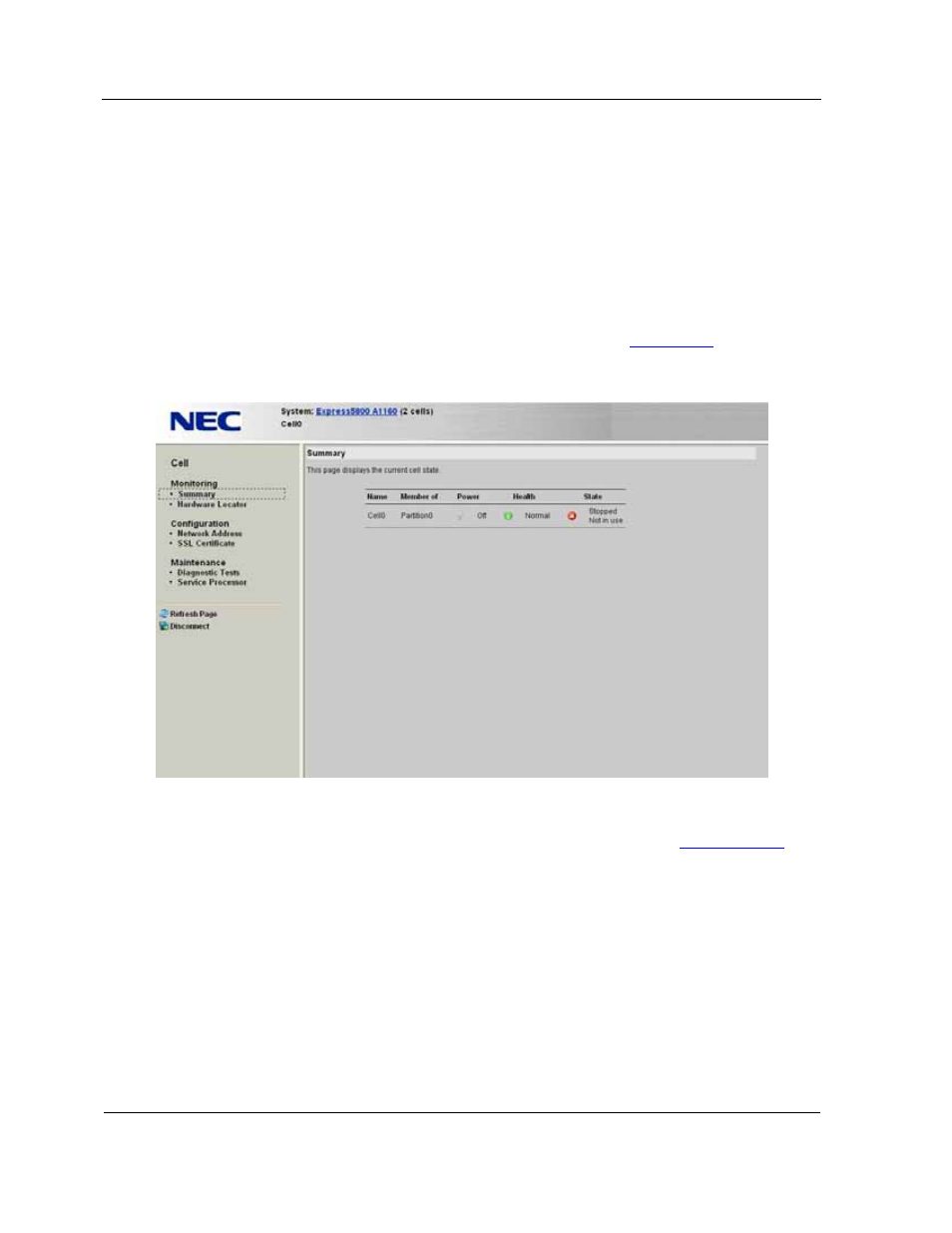

Figure 3-27 Cell Summary Page
The navigation area contains the main navigation categories (refer to 3.4 Navigation )
and links to each option in each category.
The summary area displays
• Cell name
• Partition name of which this cell is a member
• Power status
• Health
• State
These attributes are similar in cells and partitions, and values are represented by the
