Configuring Alerts and the SMTP Server using remote console interface
7-6

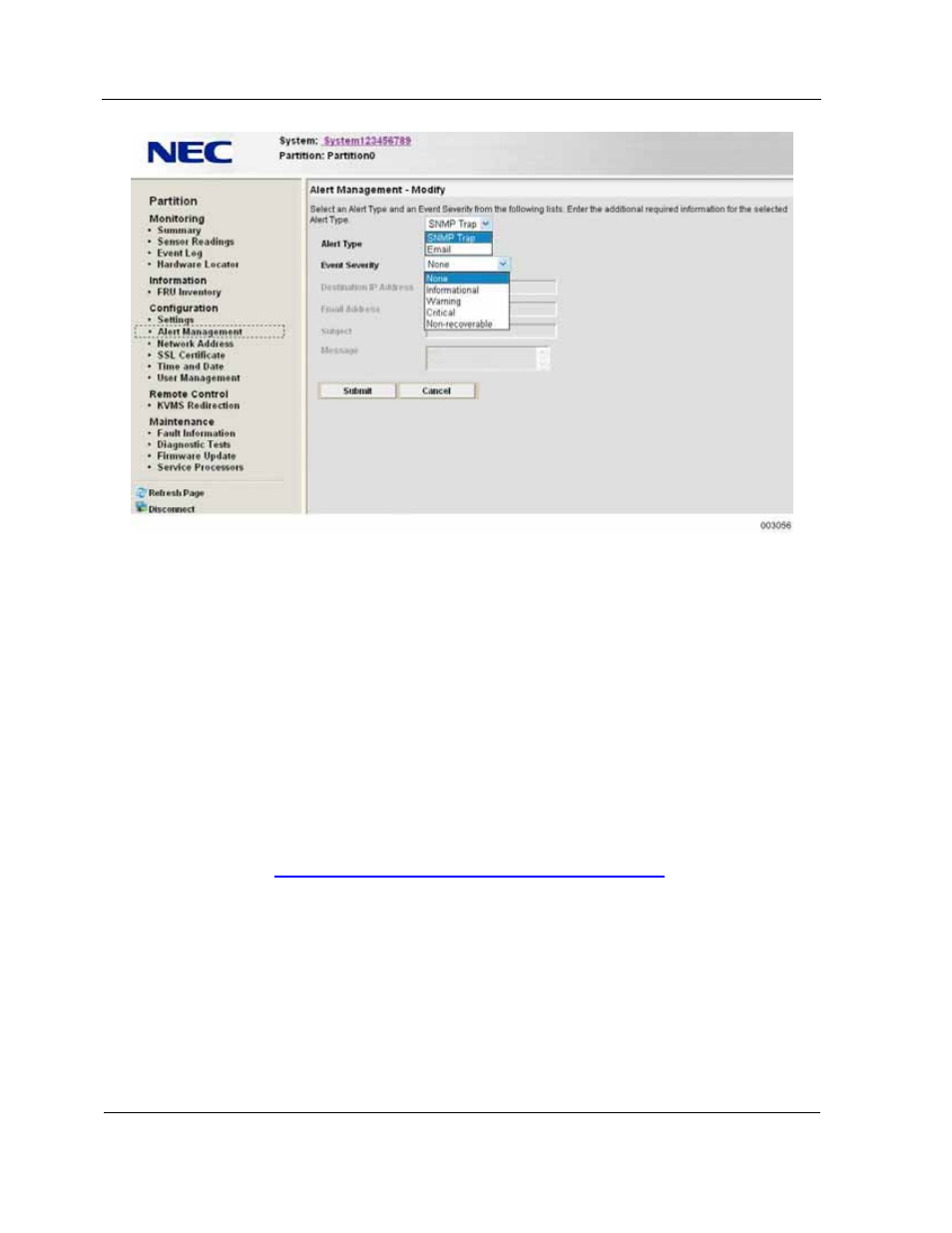

Figure 7-3 Alert Management - Modify SNMP Trap
Alternatively, click Cancel to return to the Alert Management page without modifying the
alert definition and skip the rest of this procedure.
4. Select SNMP Trap or Email from the Alert Type list.
5. Select the minimum severity level from the Event Severity list.
All events having the selected severity level or greater result in the alert being sent.
6. For e-mail alerts, type values for the following:
• Email Address (the destination e-mail address)
• Subject
• Message (the text of the e-mail message)
Refer to 9.4.2 Viewing Alerts Issued by Management Firmware for an example of
how an alert appears when received.
7. For SNMP trap alerts, type a value for Destination IP Address.
The value is the IP address of the computer on which the background process that
watches for SNMP traps runs.
8. Click Submit .
A confirmation dialog box appears.
9. Click OK .
The Alert Management page appears displaying the new information.
