Front Bezel
11-4

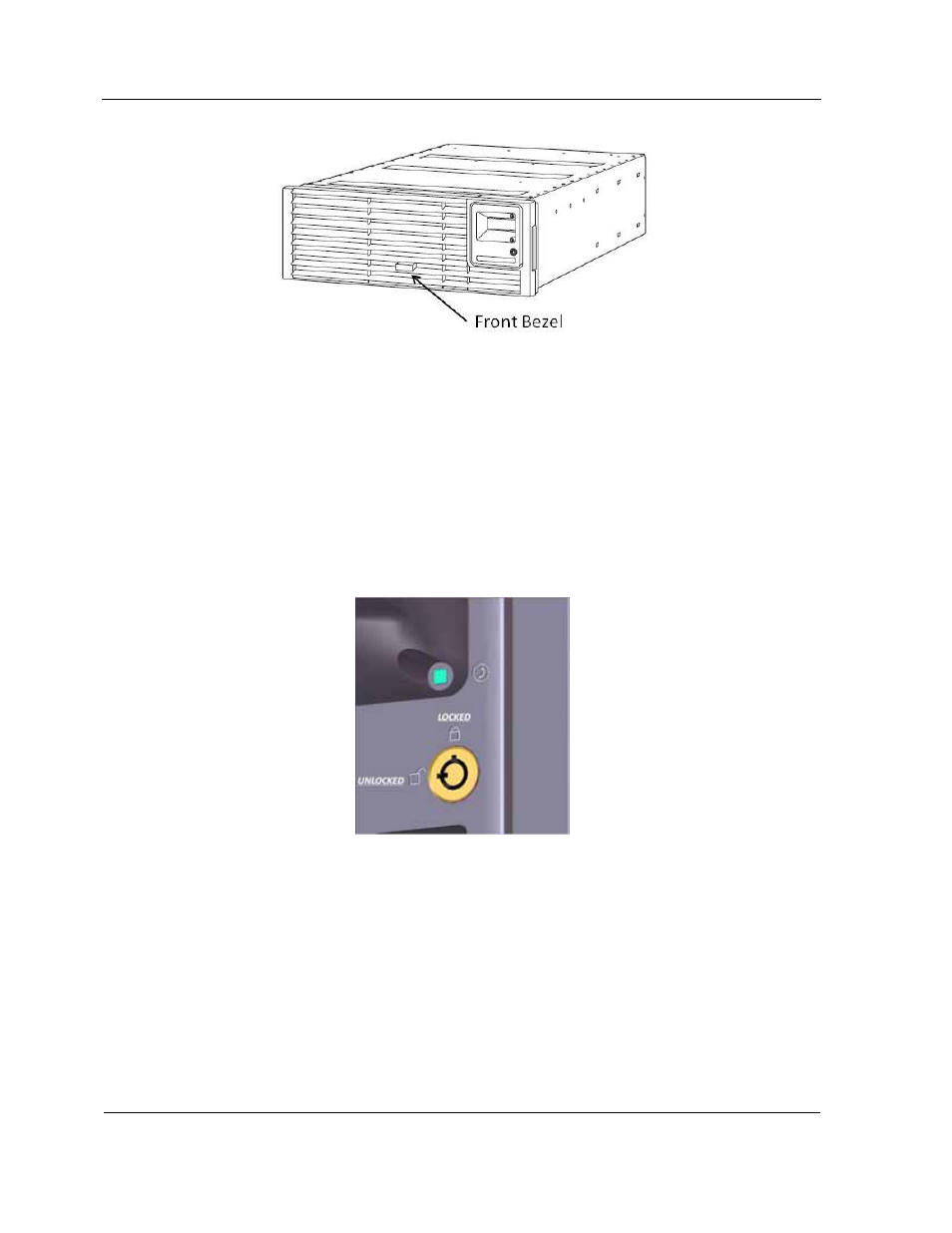

Figure 11-1 Front Bezel of the Cell
To access the components on the front of the Cell, such as DVD-RW Drive, USB
Connections, Hard Drives, or EXPRESSSCOPE® Monitor, for operations as well as for
maintenance, you need to detach the front bezel.
11.5.1. Attaching the Front Bezel
Use the following steps to attach the front bezel to the front of the Cell.
1. Insert the security key into the keyhole of the front bezel.
Figure 11-2 Keyhole for the Security Key
2. Turn left while pushing the security key straight to unlock.
3. Put the hooks on the reverse side of the front bezel into the holes on the left
mounting frame between thumbscrews, and attach the bezel to the front of the Cell.
