Examine the Cell EXPRESSSCOPE® Monitor LCDs
10-21
10.4.2. Viewing Fault Messages
If the main screen shows that faults occurred, press the OK button on the
EXPRESSSCOPE® Monitor to display the main menu. An option to view faults appears,
as shown in the following figure.

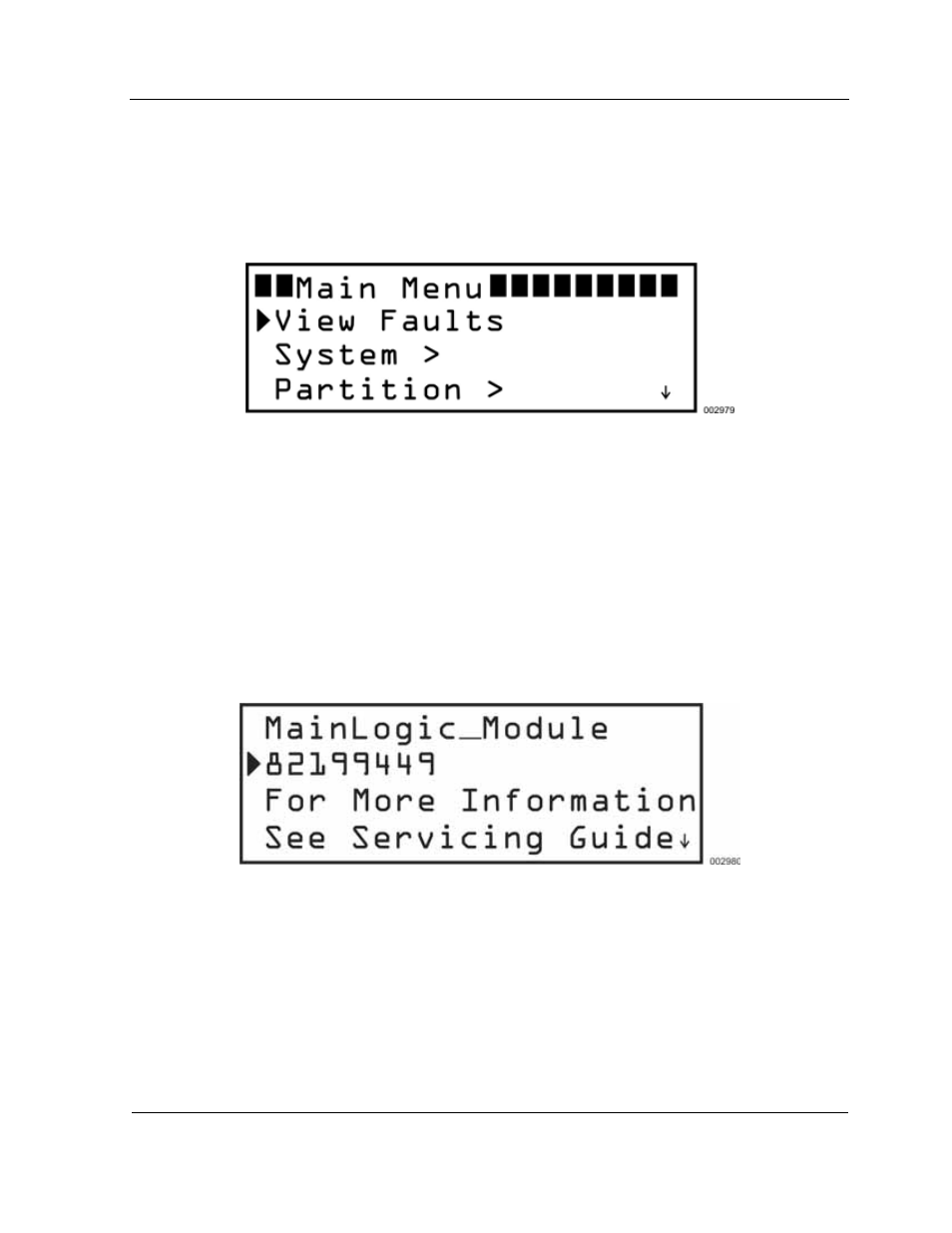

Figure 10-6 View Faults Option on Main Menu
Select View Faults and press OK to view the fault information. The display looks similar
to the following figure, where
y The FRU name and part number appear on the first two lines.
y A reference to a servicing guide on the following lines, which means one of the
following:
- For customers, the User’s Guide
- For service representatives, the Service Guide
y A down arrow appears if additional fault messages are available.
Figure 10-7 Fault Message
10.4.3. Fault Messages on the EXPRESSSCOPE® Monitor LCD
If a hardware problem occurs, a message is displayed on the EXPRESSSCOPE®
Monitor LCD on the front of the cell. The display identifies the failed unit, sometimes with
abbreviated language.
The following table gives the full unit name as it appears in documentation, the name as
it appears on the EXPRESSSCOPE® Monitor LCD, additional identifying information
