Cell remote console interface
3-40
back either flash or turn off.
This function is similar to the hardware locator in the partition remote console interface
and the chassis identification (ID) button for the cell on the EXPRESSSCOPE® Monitor
interface (refer to
4.1.2 Operational Buttons ). The differences are
• The hardware locator in the partition remote console interface identifies all cells in
the partition.
• The hardware locator in the cell remote console interface and the
EXPRESSSCOPE® Monitor ID button identify only that cell.
3.7.3. Network Address
The cell network address, or IP address, is the IP address of its Service Processor.

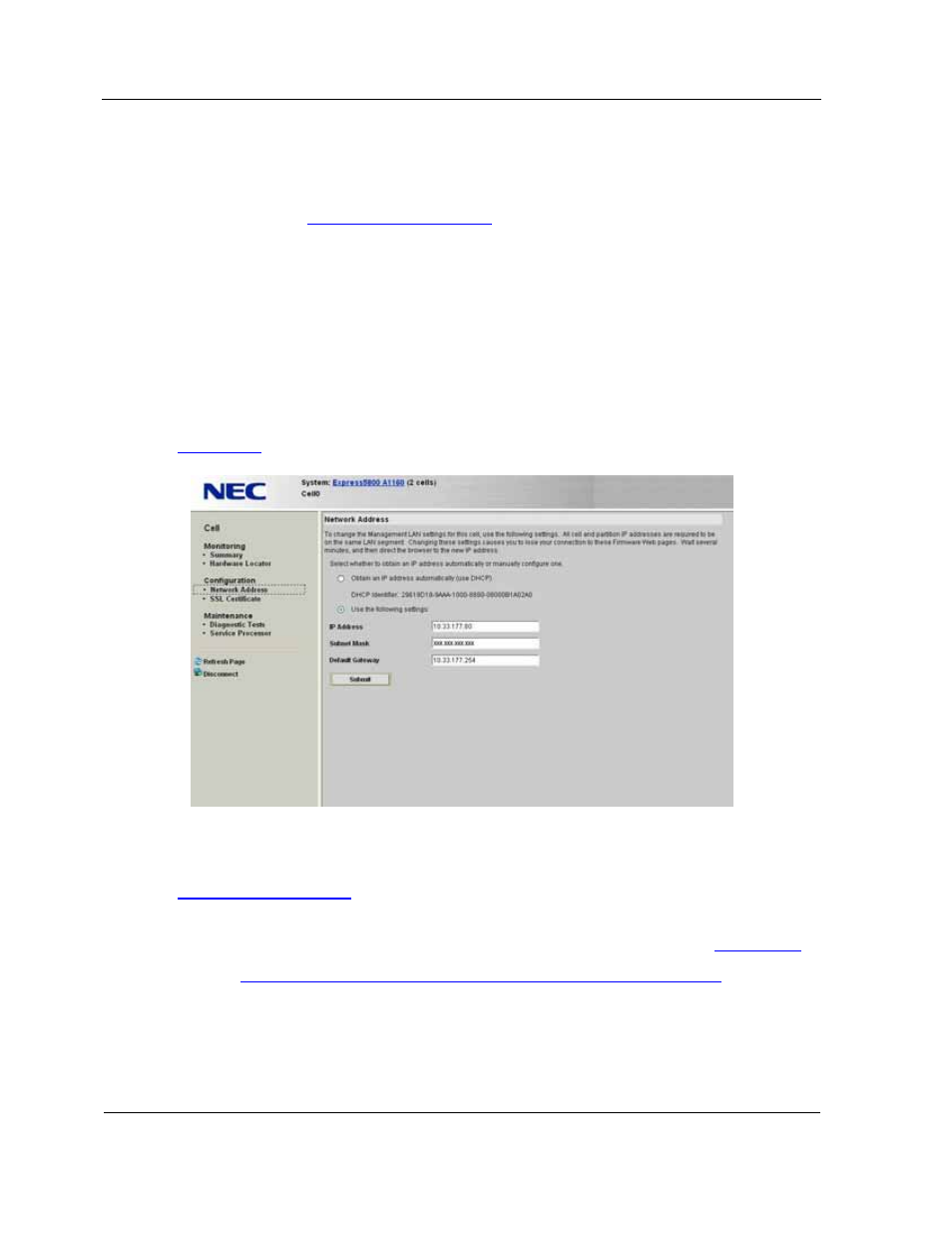

Figure 3-29 shows the cell network address page.
Figure 3-29 Cell Network Address Page
MLAN addresses for all partitions and cells must be on the same LAN segment (refer to
3.5.15 Network Address ).
Network addresses also appear as IP addresses on the EXPRESSSCOPE® Monitor UI
on the partition network submenu or on the cell network submenu (refer to
4.5 Network ).
Refer to 12.5 Setting Partition MLAN Address using Management Firmware for the
procedure to change IP addresses.
3.7.4. SSL Certificates
A Secure Sockets Layer (SSL) certificate exists for the remote console interface for
